5-Pack 12mm Automotive LED Toggle Switch — SPST ON/OFF, DC 12V 20A
Upgrade your vehicle's control panel or DIY electronics project with this set of five durable ABS automotive toggle switches. Each switch features a built-in red LED indicator that lights up when the switch is in the ON position — so you always know your circuit's status at a glance. Rated at 12V 20A, these self-locking switches are engineered for reliable, long-lasting performance in automotive and panel-mount applications.
Key Features
- Built-in Red LED Indicator: Instantly see whether the switch is ON or OFF — no guesswork, no accidental power drain.
- SPST Self-Locking Design: Stays securely in your chosen position (ON or OFF) until manually toggled again.
- Robust ABS Construction: High-quality ABS housing stands up to vibration, heat, and everyday wear in automotive environments.
- Versatile 12mm Panel Mount: Fits standard 12mm installation holes — ideal for cars, trucks, boats, motorcycles, and DIY control panels.
- Rated DC 12V / 20A: Handles a wide range of 12V accessories including lighting, fans, relays, and more.

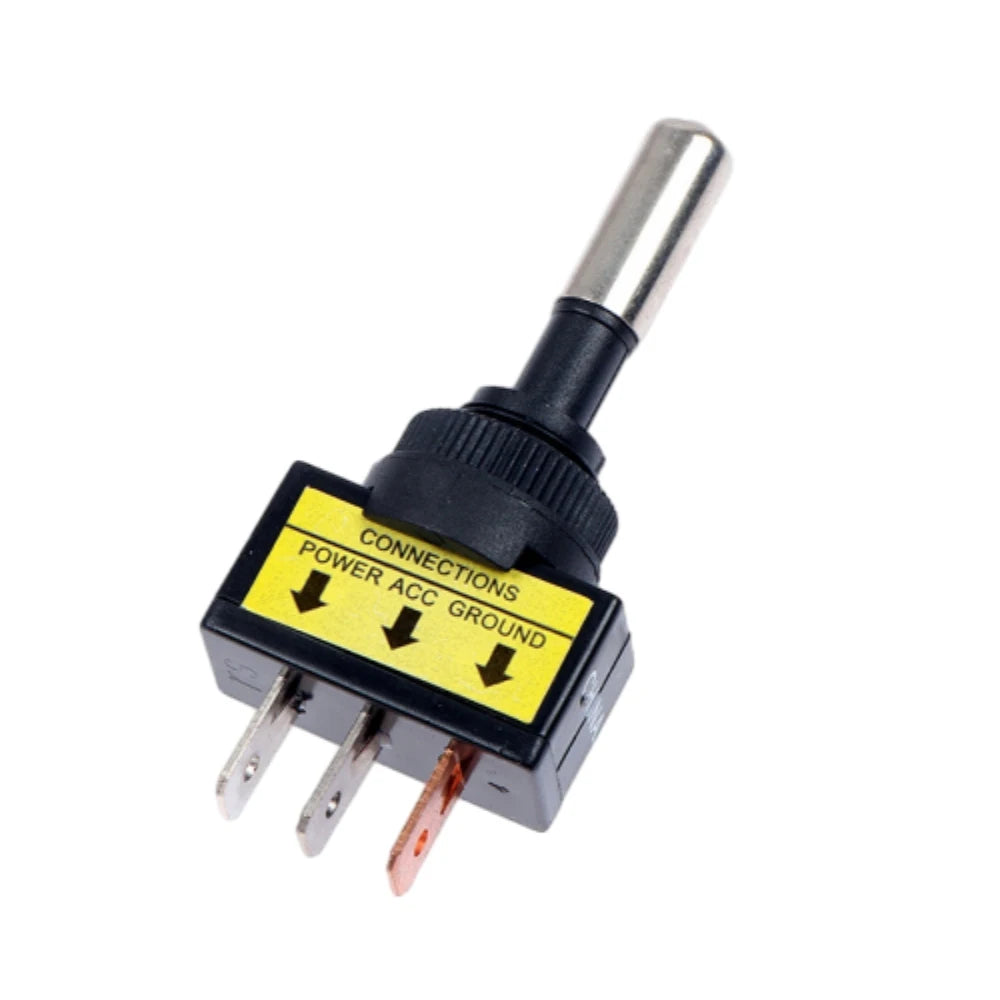

- 3-Pin Configuration: Simple, straightforward wiring for quick and confident installation.
- Pack of 5: Great value — keep spares on hand or outfit multiple panels in one order.
Specifications
| Quantity | 5 Pieces |
| Model | ASW-15D |
| Material | ABS |
| LED Color | Red |
| Voltage / Current Rating | DC 12V / 20A |
| Circuit Mode | ON / OFF (SPST) |
| Switch Function | Self-Locking |
| Pin Count | 3 Pins |
| Installation Hole Diameter | 12mm |
| Country of Origin | Made in China |
Common Applications
- Automotive accessory control (lighting, winches, auxiliary fans)
- Marine and boat panel switches
- Motorcycle and ATV handlebar or dash panels
- DIY electronics and custom control boxes
- Industrial and hobbyist panel boards
What's in the Box

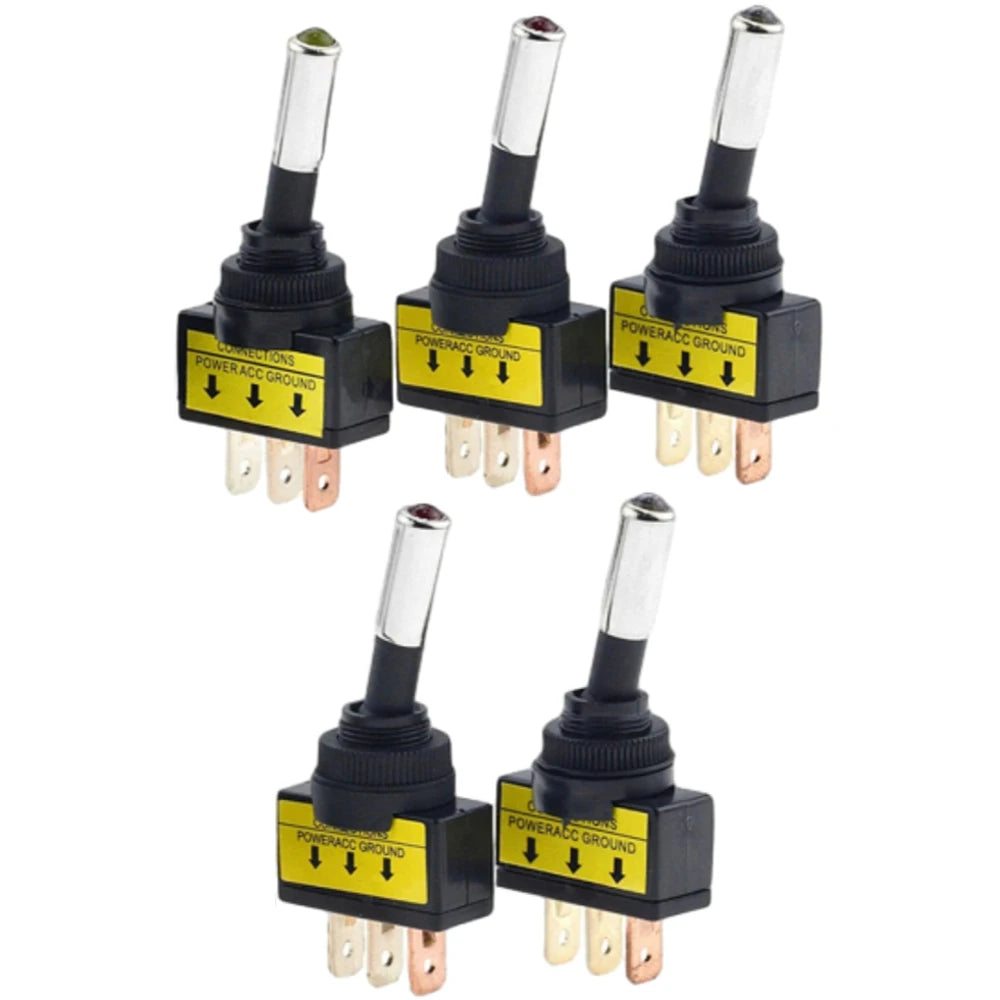

5 × ASW-15D 12mm LED Toggle Switch
Important Notes
- Colors may vary slightly from images due to monitor display differences.
- Please allow ±1mm measurement tolerance due to manual measurement.
For guidance on safe electrical wiring practices in automotive applications, visit the U.S. Consumer Product Safety Commission (CPSC) for helpful consumer safety information.
Learn more: Vandal-resistant switch
Frequently Asked Questions
Q: What is the maximum current rating for these automotive toggle switches?
A: Each ASW-15D toggle switch is rated for DC 12V at up to 20A, making them well-suited for most 12V automotive accessories such as LED light bars, auxiliary fans, relays, and more.
Q: Do these switches require a separate LED indicator light?
A: No — each switch has a built-in red LED indicator. The LED illuminates automatically when the switch is in the ON position, providing a clear visual status without any additional wiring or components.
Q: What size hole do I need to mount these toggle switches?
A: These switches require a 12mm diameter mounting hole. This is a standard size that fits most automotive dashboards, marine panels, and DIY project enclosures. A step drill bit or panel punch can be used to create a clean, precise hole.
Q: Are these switches self-locking or momentary?
A: These are self-locking (latching) switches. Once toggled to ON or OFF, they stay in that position until you manually switch them again — unlike momentary switches that only activate while held down.
