125KHz RFID Standalone Access Control Keypad Touch Screen
125KHz RFID Standalone Access Control Keypad Touch Screen

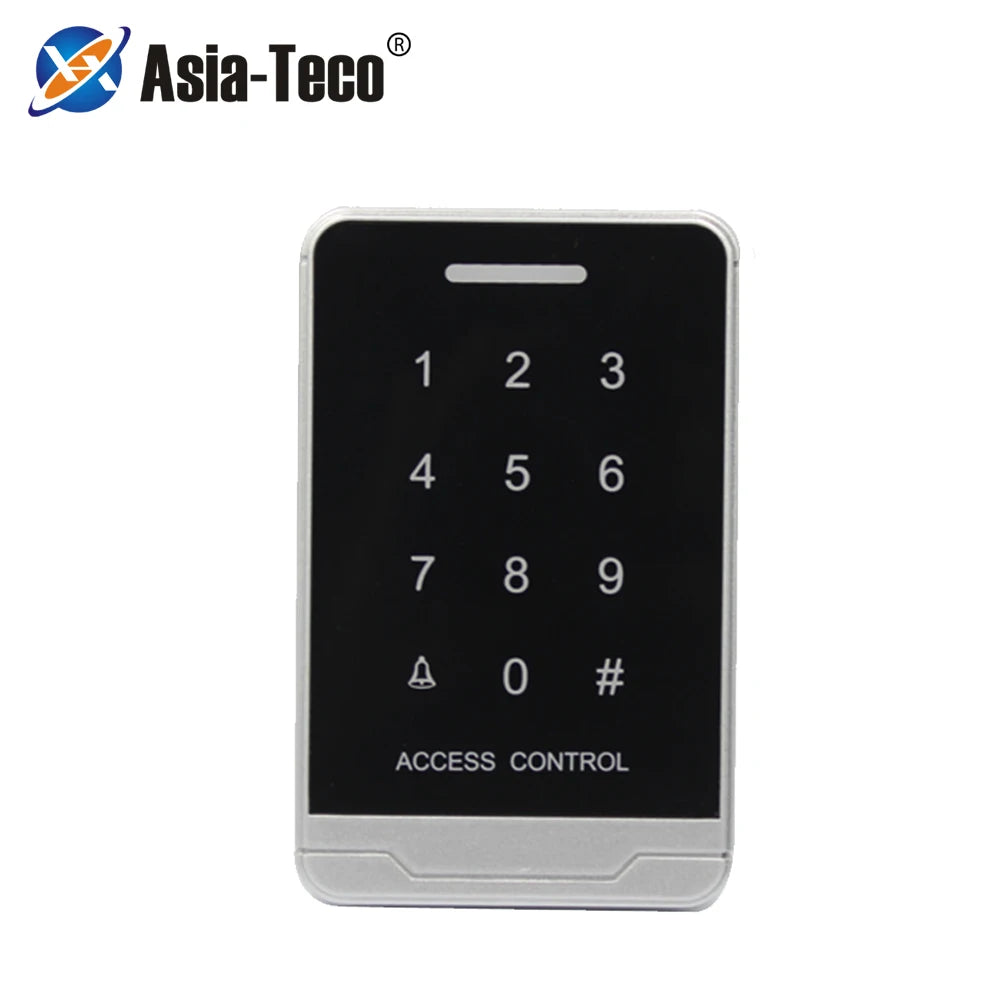

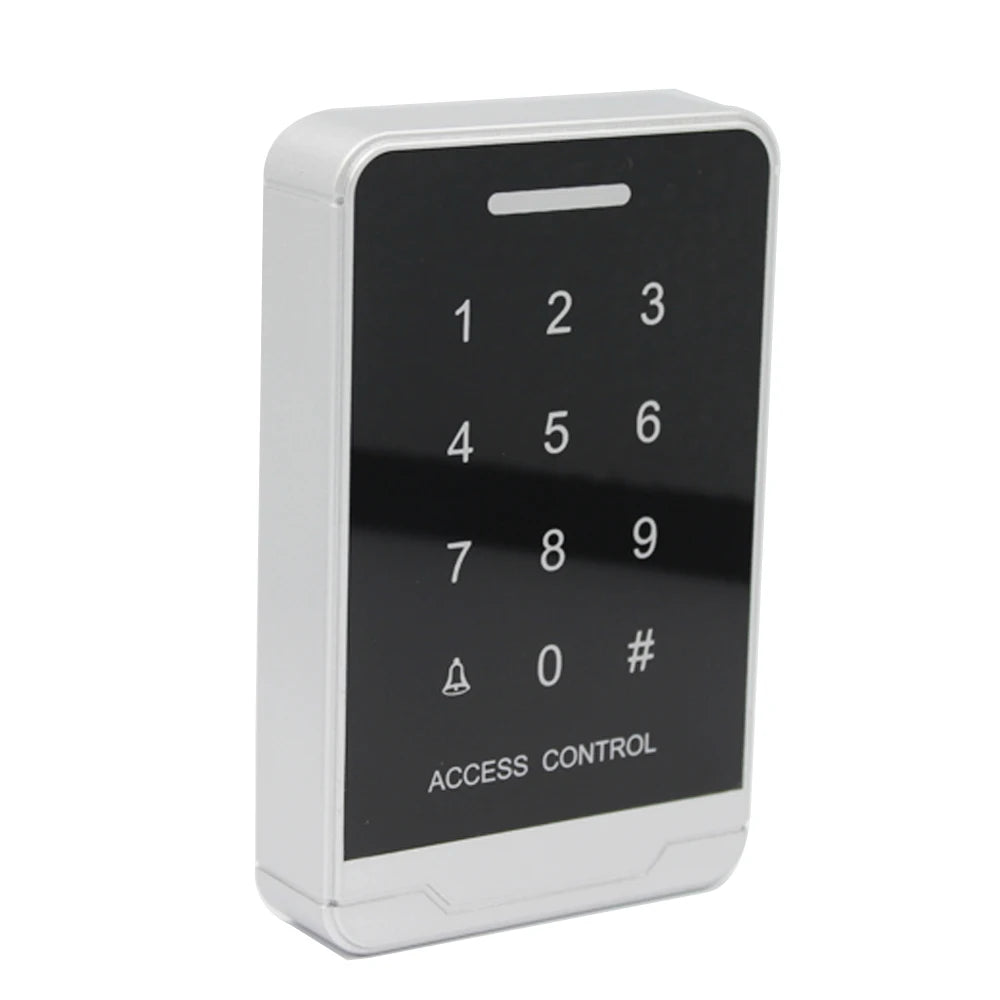

125KHz RFID Standalone Access Control System with Touch Backlight Keypad
Upgrade your entry security with the Asia-Teco DG11 Standalone Access Control System — a sleek, reliable, and feature-rich door access solution combining a 125KHz RFID card reader with a responsive touch backlight keypad. Designed for homes, offices, warehouses, and commercial facilities, this compact unit delivers professional-grade access management without the need for a networked controller.
Key Features
- Touch Backlight Keypad: Responsive, illuminated touch panel for easy operation in low-light environments.
- Large User Capacity: Supports up to 10,000 standard users plus 20 sets of public passwords — ideal for medium to large facilities.
- 125KHz RFID Compatible: Works seamlessly with standard 125KHz EM proximity cards and key fobs.
- Management Card Support: Easily add or remove users via dedicated management cards — no software required.
- Fail-Safe Security Mode: Operates in Fail Safe with Signal mode for dependable access control.
- Fast & Sensitive Response: Near-instant card and keypad recognition for smooth, uninterrupted access.
- Compact & Durable Design: Slim 120mm × 75mm × 20mm profile fits standard door frames and access panels.
Technical Specifications
- Model: DG11
- Working Voltage: DC 12V
- Working Current: ≤100mA
- Memory: 10,000 standard users
- Keypad Type: Touch Backlight Keypad
- Card Read Distance: 1–10 cm
- RF Type: 125KHz EM Card
- Working Temperature: -10°C to 60°C
- Working Humidity: 20% to 80%
- Dimensions: 120mm × 75mm × 20mm
- Weight: 140g
- Country of Origin: Made in China
Who Is This For?
This standalone access control system is perfect for offices, apartment buildings, server rooms, garages, gyms, storage facilities, and any space where controlled entry is a priority. With no PC or internet connection required for day-to-day operation, it is simple to install and even simpler to manage.
Safety & Standards
For general guidance on physical security and access control best practices, refer to the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What type of RFID cards are compatible with the Asia-Teco DG11 access control system?
A: The DG11 is compatible with standard 125KHz EM proximity cards and key fobs. It does not support 13.56MHz Mifare or HID cards. Make sure your existing cards or fobs are 125KHz EM format before purchasing.
Q: Does this access control keypad require a computer or internet connection to operate?
A: No. The Asia-Teco DG11 is a fully standalone access control system, meaning it operates independently without a computer, software, or internet connection. User management (adding/removing cards or PIN codes) is handled directly via the management card or keypad.
Q: How many users can be stored on the DG11 RFID access control system?
A: The DG11 supports up to 10,000 standard users and an additional 20 sets of public/shared passwords, making it well-suited for everything from small offices to large commercial facilities.
Q: What power supply does the DG11 access control reader require?
A: The unit requires a DC 12V power supply and consumes no more than 100mA during normal operation, making it energy-efficient and compatible with most standard access control power adapters.
