Asia-Teco 125KHz RFID Proximity Card Reader — Standalone Access Control System
Take control of who enters your space with the Asia-Teco H1-EM 125KHz RFID Access Control Reader. This compact, standalone unit stores up to 3,000 users, reads proximity cards in under half a second, and is engineered to perform in virtually any environment thanks to its IP67-rated waterproof, epoxy-potted housing. Whether you're securing an office, warehouse, server room, or outdoor gate, this reader delivers reliable, contactless entry management day and night.
Programmed effortlessly via infrared remote control and compatible with widely available TK4001 / EM4100 125KHz proximity cards, this unit integrates seamlessly into new or existing access control systems using standard Wiegand input/output — making it one of the most versatile readers available at this price point.
Made in Mainland China.
Key Features
- 🔒 Contactless 125KHz Proximity Card Reader — supports TK4001 & EM4100 card formats
- 👥 3,000 User Capacity — ideal for small to medium-sized facilities
- 📡 Read Range: Up to 8 cm (0–100 mm) — fast, convenient tap-and-go access
- 💧 IP67 Waterproof Rating — fully sealed for indoor and outdoor installation
- 🛡️ Anti-Vandal Design — solid epoxy-potted construction for durability
- ⚡ Wiegand Input & Output — compatible with most access control panels and systems
- 🔋 Ultra-Low Power Consumption — standby current under 30mA
- 🔌 Operating Voltage: DC 10V–24V — flexible power options
- 🚨 Reverse Polarity Protection — safeguards against incorrect wiring
- ⏱️ Reader Interval: 0.5 seconds — quick response for high-traffic entry points
- 📻 Infrared Remote Control Programming — no PC or software required for setup

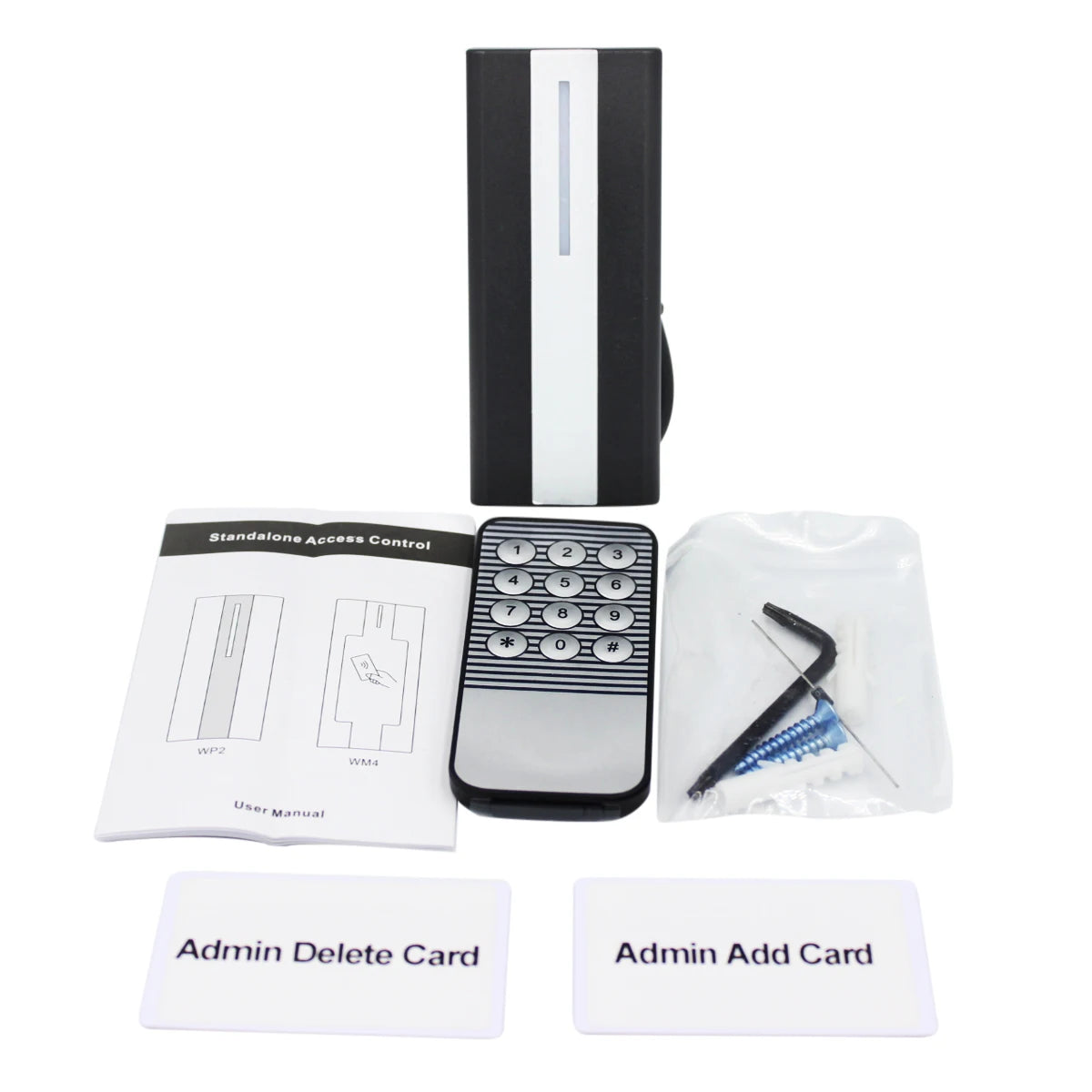

- 🏠 Includes Admin Cards — easy user management right out of the box
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Asia-Teco |
| Model | H1-EM |
| Frequency | 125KHz (also available in 13.56MHz) |
| Supported Cards | TK4001, EM4100 |
| User Capacity | 3,000 users |
| Read Range | 0–100mm (up to 8cm) |
| Operating Voltage | DC 10V–24V |
| Wiegand | Input + Output |
| Waterproof Rating | IP67 |
| Standby Current | < 30mA |
| Reader Interval | 0.5 seconds |
| Housing Material | ABS Plastic / Zinc-Alloy (model dependent) |
| Origin | Mainland China |
Who Is This For?
This RFID reader is an excellent choice for property managers, business owners, IT administrators, security integrators, and DIY home security enthusiasts who need a rugged, reliable, and easy-to-deploy access control solution. Its Wiegand compatibility means it works with a broad range of third-party control panels and door lock hardware.
For more information on physical access control best practices and standards, visit the NIST Identity & Access Management resource page.
Frequently Asked Questions
Q: What cards are compatible with the Asia-Teco H1-EM 125KHz RFID reader?
A: This reader is compatible with TK4001 and EM4100 125KHz proximity cards and key fobs, which are widely available and inexpensive. These are standard contactless cards used in many access control systems worldwide.
Q: Is this RFID reader suitable for outdoor installation?
A: Yes. The H1-EM carries an IP67 waterproof rating, meaning it is protected against dust ingress and temporary submersion in water. Combined with its solid epoxy-potted, anti-vandal housing, it is well-suited for outdoor gates, building entrances, and other exposed environments.
Q: How do I add or remove users from the system?
A: User management is handled via the included Admin cards and an infrared remote control — no computer or specialist software is required. Simply follow the programming instructions to enroll or delete proximity cards quickly and easily.
Q: Does this reader support Wiegand protocol?
A: Yes. The H1-EM supports both Wiegand input and output, making it compatible with the vast majority of commercially available access control panels and door controllers. This ensures easy integration into both new installations and existing systems.
Q: What is the maximum number of users this system can store?
A: The reader supports up to 3,000 individual users, making it suitable for small offices, apartment buildings, schools, and mid-sized commercial facilities.
