Complete Door Access Control System — RFID Keypad, Magnetic Lock & Power Supply
Upgrade your home, office, apartment, hotel, or factory entrance with this all-in-one 125KHz RFID Keypad Access Control Kit by Asia-Teco. Everything you need is included — standalone controller, power supply, lock hardware, exit button, doorbell, and RFID keyfobs — so you can secure any door without complex wiring or a connected computer.
Made in Mainland China.
Why Choose This Access Control Kit?
- 3-in-1 Unlock Methods: Enter via RFID card swipe, PIN keypad, or combined card + PIN for an added layer of security.
- Up to 1,000 Users: Manage access for large households, small businesses, and multi-tenant buildings.
- Standalone Operation: No PC or network connection required — the controller works independently right out of the box.
- Backlit Smart Keypad: Clearly visible buttons day and night, built from durable ABS material.
- Built-in Doorbell Support: Integrated doorbell button for added convenience at your entrance.
- Fail-Safe Security Mode: Designed to default to a safe state in the event of a power interruption.
- Wide Temperature Range: Operates reliably from -10°C to +70°C, suitable for indoor and sheltered outdoor use.
- CE Certified: Meets international safety and compliance standards.

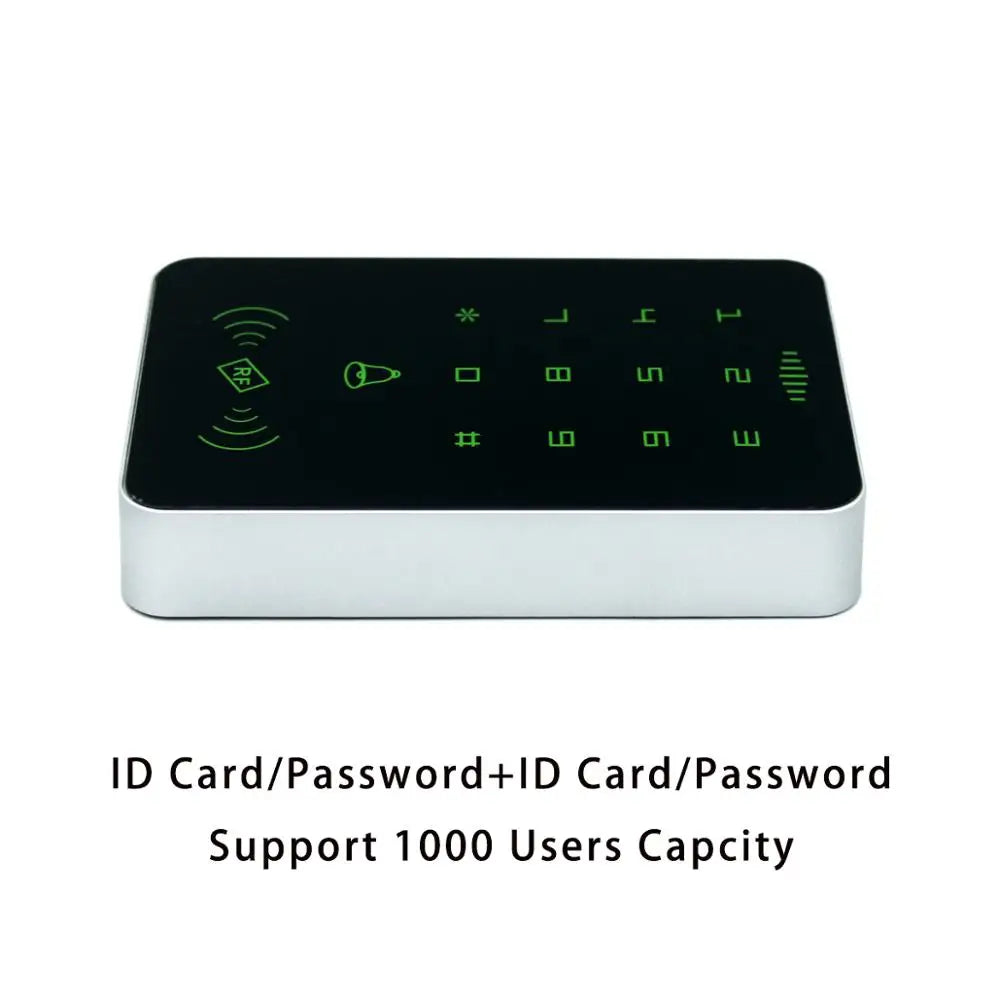

Access Controller Specifications
- User Capacity: 1,000 users
- Working Frequency: 125 KHz
- Working Voltage: DC 12V
- Working Current: <100mA
- Reading Distance: 0–10 cm

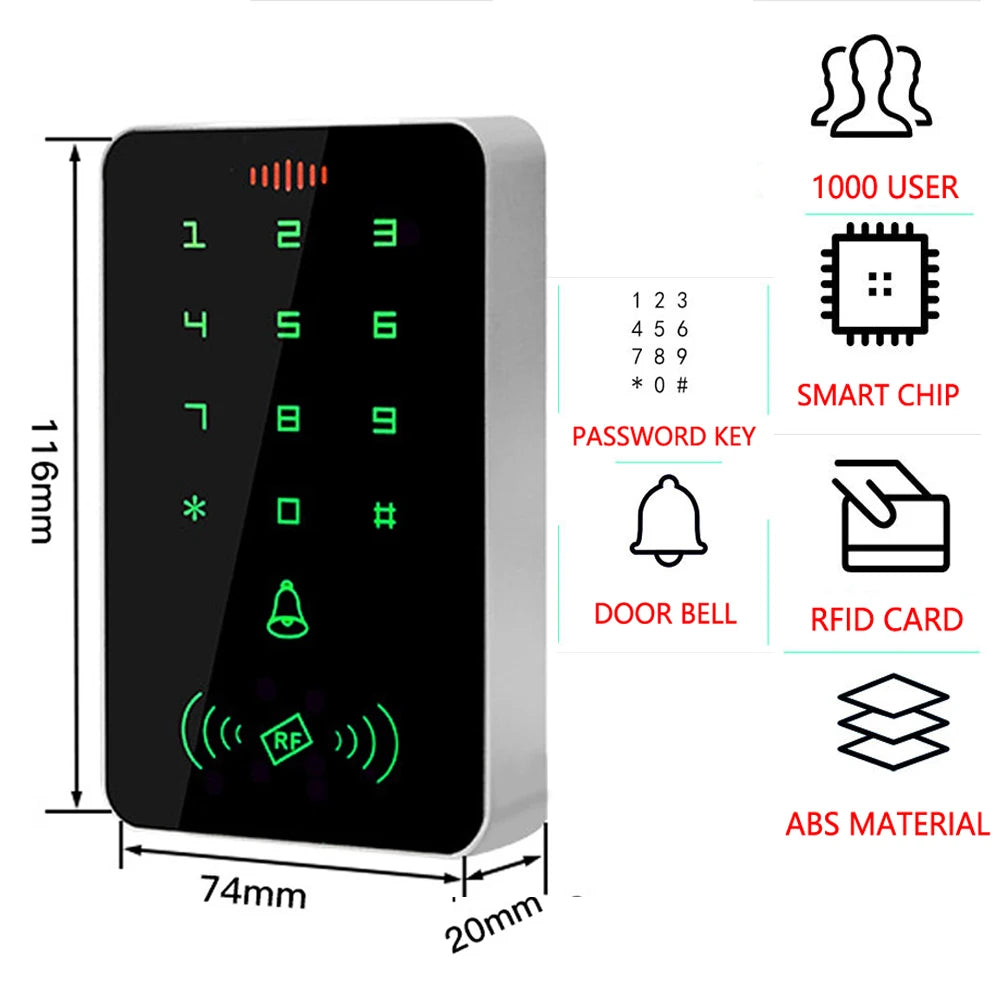

- Dimensions: 73 × 115 × 20 mm
- Relative Humidity: 20%–90%
- Unlock Methods: Card / Password / Card + Password
- Material: ABS
Power Supply Specifications
- AC Input: 90V–260V
- DC Output: 12V / 5A
- Rated Power: 42W
- Working Current: 3.5A
- Adjustable Delay: 0–20 seconds
- Dimensions: 103 × 67 × 32 mm
RFID Keyfobs Specifications
- Swipe Mode: ID Card
- Working Frequency: 125 KHz
- Induction Distance: 2–10 cm
- Size: 65 mm diameter
Door Exit Button Specifications
- Material: PC flame-retardant
- Size: 86 × 86 mm
- Application: Office, residence, etc.
Doorbell Specifications
- Material: ABS flame-retardant
- Power: DC 12V
- Dimensions: 80 × 50 × 20 mm

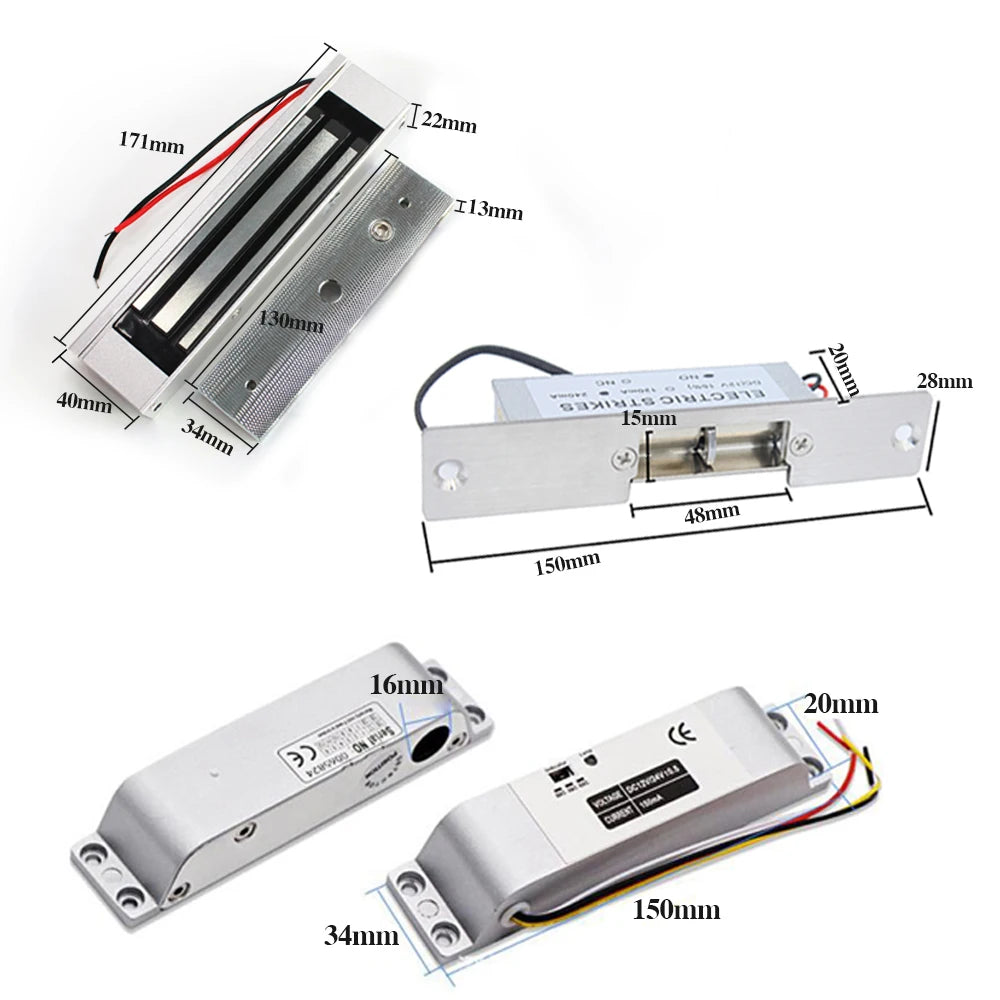

Choose Your Kit — Compatible with Multiple Door Types
| Kit | Best For | Package Includes |
|---|---|---|
| Kit 1 | Wooden & metal doors (no bracket needed) | Keypad + Power Supply + Electric Strike Lock + Doorbell + Exit Button + 10 Keyfobs |
| Kit 2 | General doors with ZL bracket | Keypad + Power Supply + 180KG Magnetic Lock + ZL Bracket + Exit Button + Doorbell + 10 Keyfobs |
| Kit 3 | General doors (no bracket needed) | Keypad + Power Supply + 180KG Magnetic Lock + Doorbell + Exit Button + 10 Keyfobs |
| Kit 4 | Frameless glass doors (U bracket included) | Keypad + Power Supply + 180KG Magnetic Lock + U Bracket + Doorbell + Exit Button + 10 Keyfobs |
| Kit 5 | Glass doors (built-in installation) | Keypad + Power Supply + Electric Bolt Lock + Doorbell + Exit Button + 10 Keyfobs |
| Kit 6 | Wooden, metal & stainless steel doors (no bracket needed) | Keypad + Power Supply + Electric Drop Bolt Lock + Doorbell + Exit Button + 10 Keyfobs |
Not sure which kit fits your door? Contact us with a photo of your door and we'll help you choose the right configuration.
Safety & Installation Resources
For general electrical installation safety guidance, refer to OSHA Electrical Safety Standards. Always ensure your installation is performed in accordance with local building codes and electrical regulations.
Frequently Asked Questions
Q: Does the 125KHz RFID access control keypad need to be connected to a computer to work?
A: No. This is a fully standalone access controller. It stores up to 1,000 user credentials onboard and operates independently without any PC or network connection, making installation and daily use straightforward.
Q: What door types are compatible with this access control system kit?
A: The kit is designed to work with wooden doors, metal doors, stainless steel doors, glass doors (framed and frameless), and security doors. Select the appropriate kit variant (Kit 1–6) based on your specific door type and whether you need a bracket.
Q: How many RFID keyfobs are included, and can I add more users later?
A: Each kit includes 10 RFID keyfobs. The system supports up to 1,000 users, so you can enroll additional keyfobs or cards at any time through the keypad's programming menu.
Q: What happens to the lock if there is a power outage?
A: The system uses a Fail-Safe security mode, which means the lock defaults to a designated safe state during a power interruption. The included power supply (90V–260V AC input, DC 12V output) is built with anti-interference components for stable, reliable operation.
Q: Is this access control kit CE certified?
A: Yes. This access control system carries CE certification, confirming it meets the relevant European safety, health, and environmental protection standards.
