Asia-Teco T2D RFID Keypad Access Control System

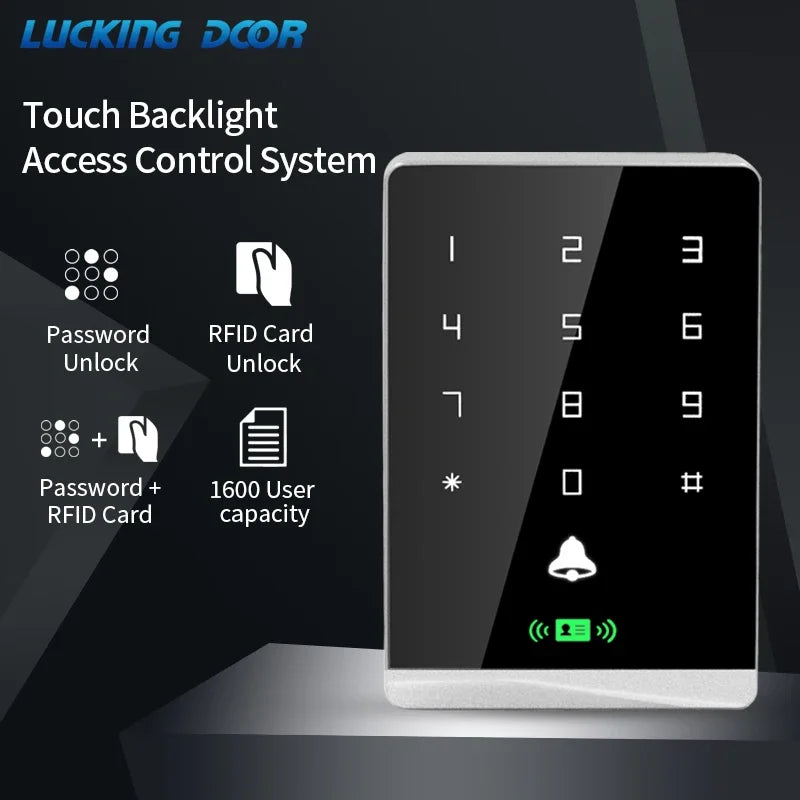

Take command of your entryways with the Asia-Teco T2D 125KHz RFID Touch Backlight Keypad Access Control Reader. Designed for homes, offices, warehouses, and commercial properties, this smart door-lock panel lets you choose from card-only, PIN-only, or card-plus-PIN entry — giving you complete flexibility over who gets in and how. Made in Mainland China.
Key Features

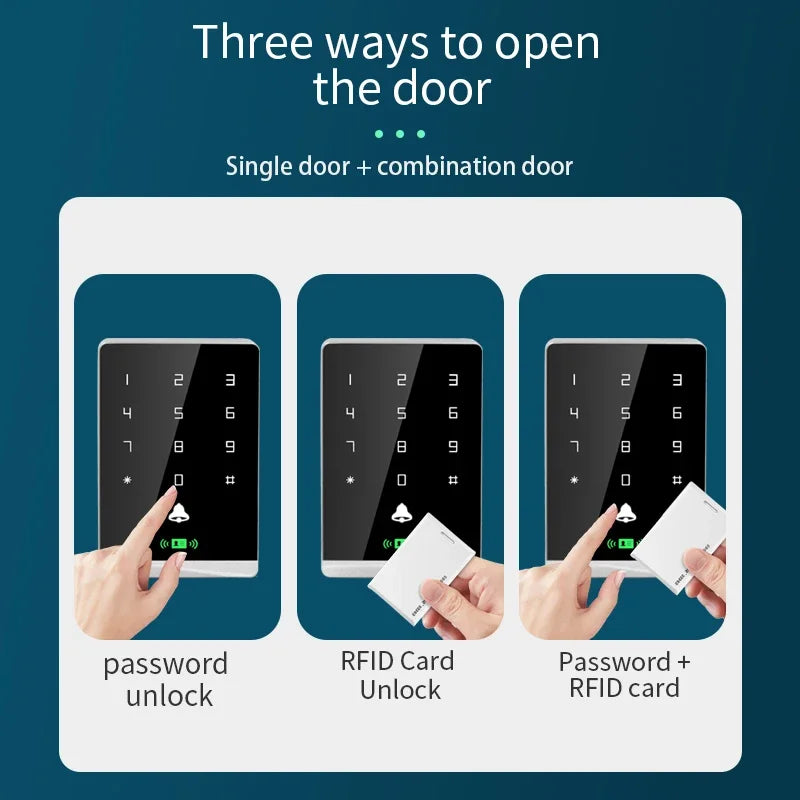

- Triple Entry Modes: Open the door via RFID card swipe, numeric PIN, or a combination of both for enhanced security.
- 125KHz RFID Technology: Fast, reliable, contactless card reading compatible with standard ID-format proximity cards and key fobs.

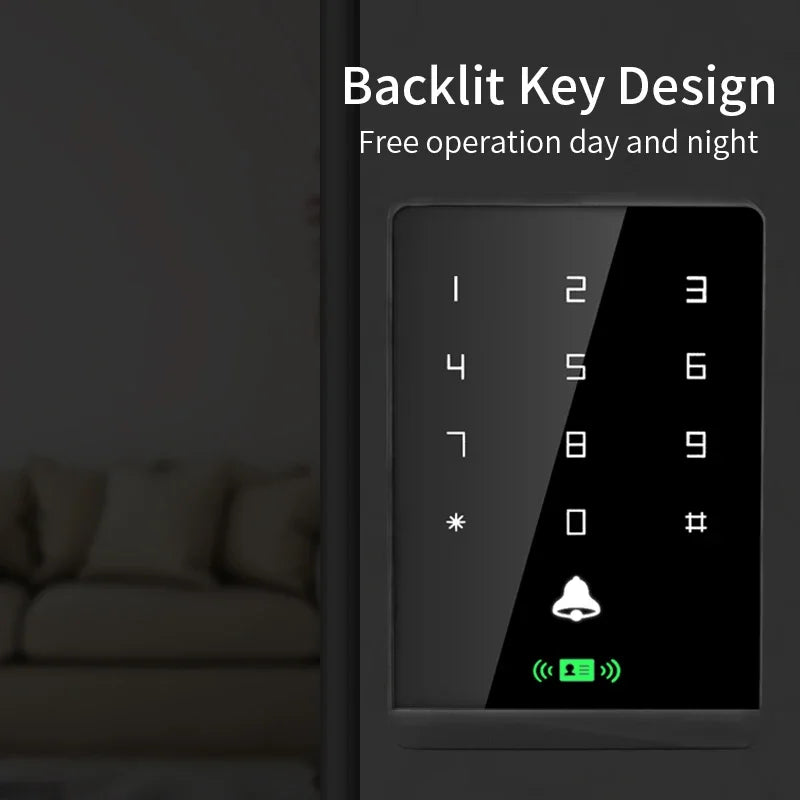

- Illuminated Touch Keypad: Backlit keys ensure easy, confident use day or night in low-light environments.

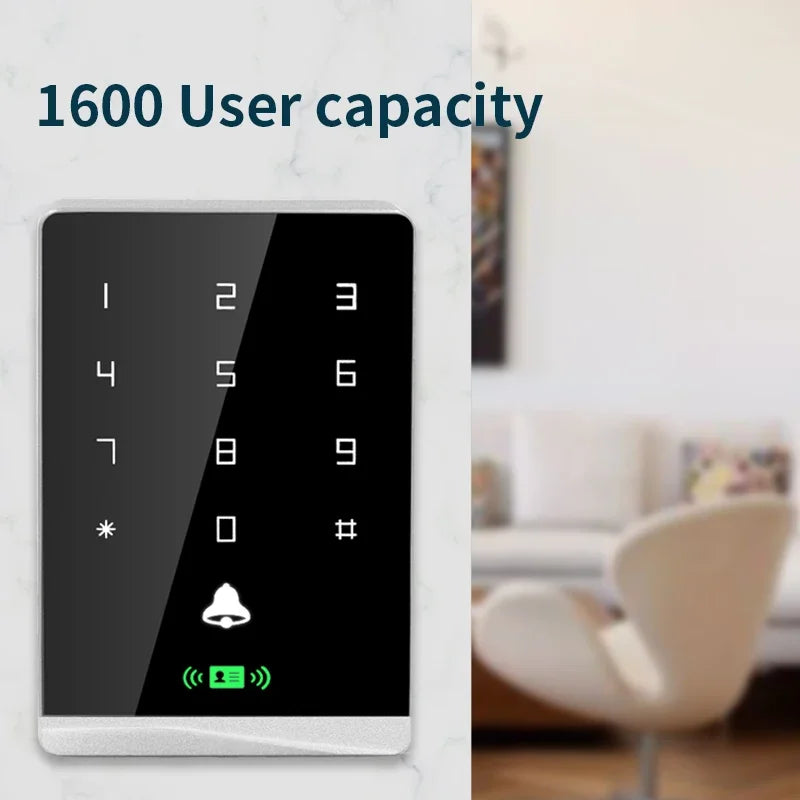

- High User Capacity: Manage up to 1,600 card/keyboard users — ideal for multi-tenant buildings, offices, and shared facilities.
- Wide Operating Temperature: Functions reliably from -25°C to 60°C (-13°F to 140°F), suitable for a broad range of climates.
- RS-232 Interface: Straightforward integration with access control software and door hardware for a complete security setup.
- Flame-Retardant Housing: Durable enclosure built with fire-retardant materials for added safety.
- Flexible Power Input: Operates on DC 9–16V for easy installation with standard power supplies.
Specifications
| Model | T2D Reader Keypad |
| Brand | Asia-Teco |
| Frequency | 125KHz RFID |
| Entry Methods | Card / PIN / Card + PIN |
| User Capacity | 1,600 |
| Interface | RS-232 |
| Working Voltage | DC 9–16V |
| Ambient Temperature | -25°C to 60°C |
| Waterproof Rating | Non-Waterproof (indoor use recommended) |
| Country of Origin | Mainland China |
Who Is This For?
Whether you manage a small office, an apartment building, a gym, or a retail storage room, the Asia-Teco T2D gives you professional-grade access control without complex infrastructure. Its intuitive setup and generous user capacity make it a go-to choice for property managers and security-conscious homeowners alike.
Safety & Consumer Information
For general guidance on evaluating and selecting access control systems, visit the U.S. Consumer Product Safety Commission (CPSC) for product safety resources.
Frequently Asked Questions
Q: What types of cards are compatible with this 125KHz RFID access control reader?
A: The Asia-Teco T2D is compatible with standard 125KHz EM4100/ID-format proximity cards and key fobs. It is not compatible with 13.56MHz HF cards (such as MIFARE). Always verify your existing cards are 125KHz before purchasing.
Q: Can this keypad access control system be used outdoors?
A: The T2D Reader Keypad is rated Non-Waterproof, so it is best suited for indoor use or covered/sheltered outdoor locations where it is protected from direct rain and moisture. For fully exposed outdoor installations, a weatherproof enclosure is recommended.
Q: How many users can be stored in the access control system?
A: The system supports up to 1,600 card and keyboard (PIN) users, making it well-suited for medium to large access control deployments such as offices, apartment complexes, or multi-department facilities.
Q: What does the RS-232 interface allow me to do?
A: The RS-232 interface enables the T2D to communicate with compatible access control management software and controllers, allowing you to program users, manage entry logs, and integrate the reader into a broader security system.
