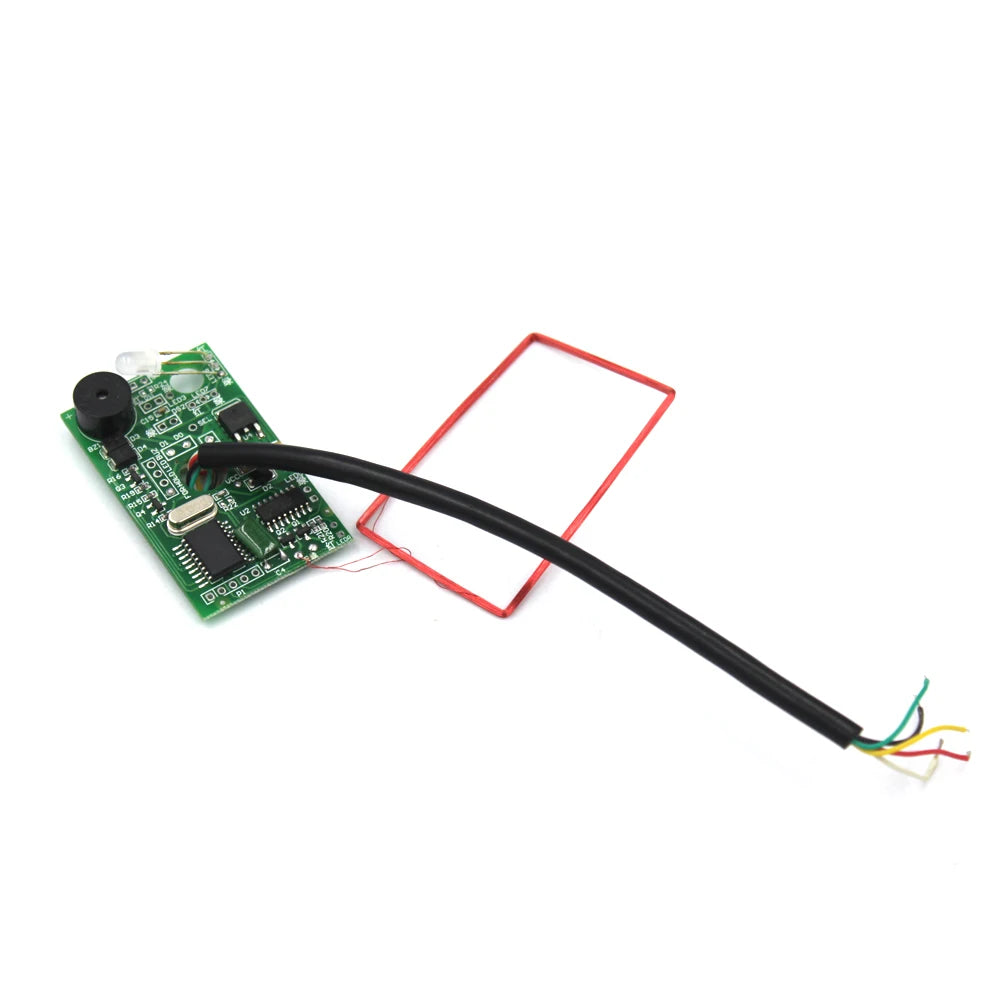

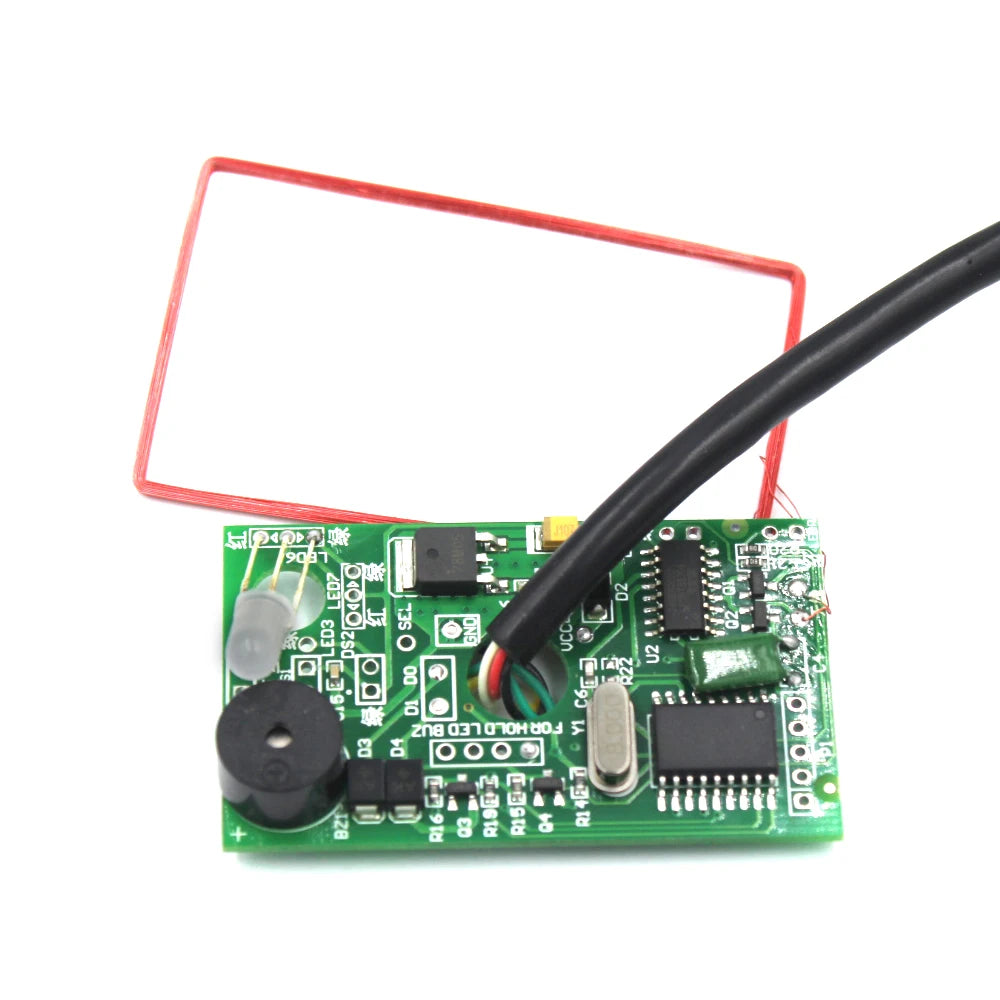

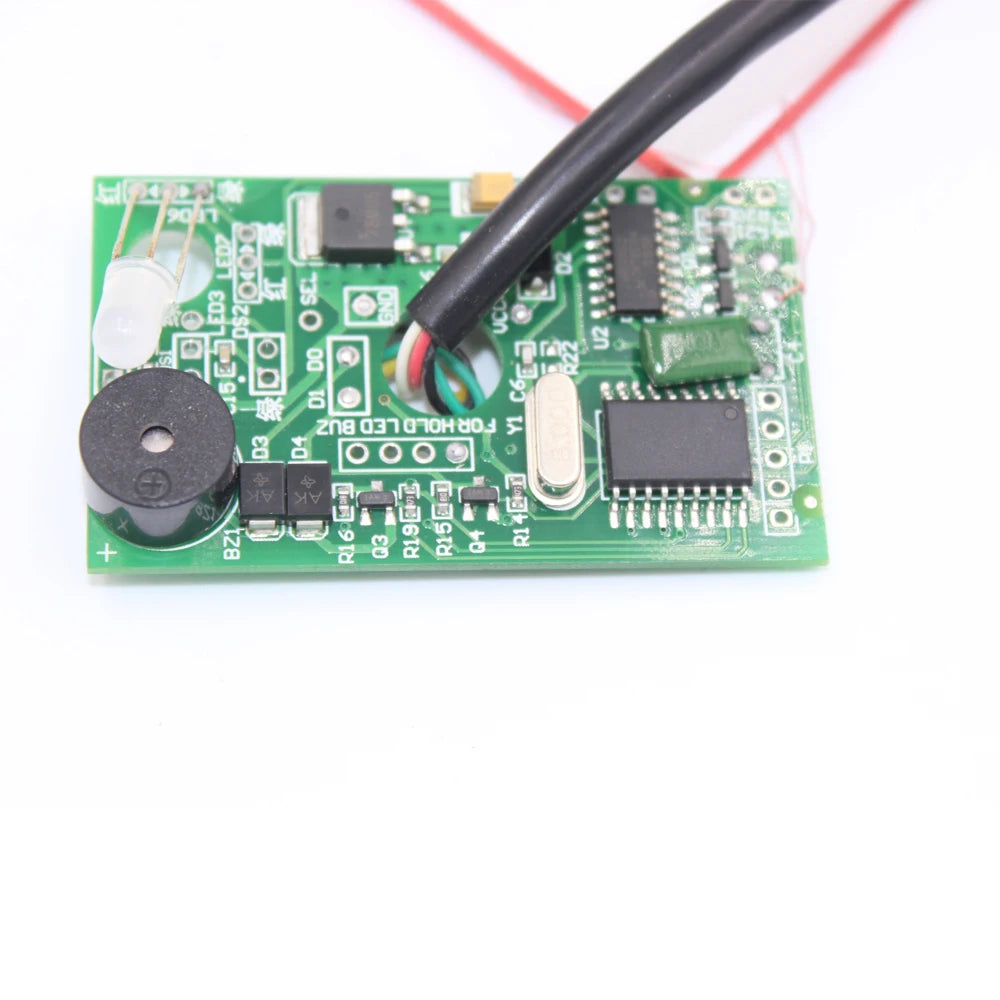

Asia-Teco LK-009 — 125KHz RFID Embedded Access Control Module

Upgrade your building's entry system with the Asia-Teco LK-009 125KHz RFID Embedded Access Control Module. Designed for standalone door access and building intercom integration, this compact board supports both 125KHz EM/ID cards and 13.56MHz IC cards, making it a versatile solution for residential buildings, offices, and secure entry points.

Made in Mainland China.

Key Features

• Dual Frequency Compatibility: Reads both 125KHz EM/ID cards and 13.56MHz IC cards for maximum flexibility.
• Easy Card Management: Add, delete, or reset user cards directly at the module — no PC or special software required.
• Compact & Lightweight: Weighing just 80g, this embedded module fits seamlessly into existing intercom and access control housings.
• Wide Temperature Range: Operates reliably from -20°C to +60°C, suitable for both indoor and outdoor installations.
• Low Power Consumption: Runs on DC 12V with a working current under 100mA — energy-efficient and cost-effective.
• Close-Range Card Reading: Card read distance of 1–10cm ensures secure, intentional access events.
• LED Indicators: Green and red LEDs provide clear visual feedback during card setup and access events.

Technical Specifications

• Model: LK-009
• Brand: Asia-Teco
• Working Voltage: DC 12V
• Working Current: <100mA
• Weight: 80g
• Card Types Supported: 13.56MHz IC card or 125KHz EM/ID card
• Operating Temperature: -20°C to +60°C
• Card Read Distance: 1–10cm
• High-Concern Chemicals: None

How to Set Up Master Card

1. Step 1: Power off the unit. Connect the S1 jumper cap to pins 2–3, then restore power. Wait for the green LED to flash three times.
2. Step 2: Present two consecutive blank cards (the first card becomes the "Add Card," the second becomes the "Delete Card"). The red LED will flash rapidly, confirming setup.
3. Step 3: Power off again, reconnect the jumper cap to pins 1–2, then restore power. Your master card setup is complete.

How to Add or Delete Users

• Add User: In standby mode, present the "Add Card," then present each user card you wish to enroll, then present the "Add Card" again to exit.
• Delete User: In standby mode, present the "Delete Card," then present the user card(s) to remove, then present the "Delete Card" again to exit.
• Delete All Users: In standby mode, present the "Delete Card," then the "Add Card," then the "Delete Card" again to wipe all enrolled users.

Installation & Safety

This module is intended for integration by qualified installers or electronics professionals familiar with access control systems and DC wiring. For best practices on electronic device installation safety, refer to U.S. Consumer Product Safety Commission (CPSC).

Learn more: Access control

Frequently Asked Questions

Q: What types of RFID cards are compatible with the LK-009 access control module?

A: The Asia-Teco LK-009 module supports both 125KHz EM/ID cards and 13.56MHz IC cards, giving you broad compatibility with most standard RFID access cards and key fobs.

Q: Can I manage users without a computer or special software?

A: Yes. User enrollment and deletion are managed entirely at the module itself using designated "Add" and "Delete" master cards. No computer, app, or additional software is required.

Q: What is the maximum number of users this module can store?

A: Please refer to the product datasheet or contact Asia-Teco directly for the maximum card storage capacity, as this may vary by firmware version.

Q: Is this module suitable for outdoor installation?

A: The LK-009 operates across a wide temperature range of -20°C to +60°C, making it suitable for many installation environments. For outdoor use, it is recommended to house the module in a weatherproof enclosure to protect it from moisture and direct exposure to the elements.

Q: What power supply does the LK-009 require?

A: The module operates on DC 12V with a working current of less than 100mA. A regulated 12V DC power supply is recommended for stable operation.
