125KHz RFID Anti-Duplication Access Control Keypad Reader
125KHz RFID Anti-Duplication Access Control Keypad Reader
Asia-Teco Smart RFID Anti-Duplication Access Control Keypad Reader
Upgrade your entry security with the Asia-Teco A5D Anti-Copy 125KHz RFID Access Control Keypad Reader. Featuring encrypted card reading technology designed to prevent unauthorized card duplication, this unit offers a reliable and robust solution for offices, apartment buildings, warehouses, and any facility that demands controlled access. With Wiegand interface compatibility and storage for up to 1,000 users, it's built for scalability and seamless integration into existing security systems.
Why Choose This RFID Access Control Reader?
- Anti-Duplication Encryption: Advanced encrypted reading technology makes it significantly harder for unauthorized parties to clone or copy access cards.
- 125KHz EM/ID Card Compatible: Works with standard EM(ID) cards right out of the box; IC card support available for bulk/custom orders.
- Wiegand Interface: Industry-standard Wiegand output ensures easy integration with a wide range of access controllers and security panels.
- 1,000 User Capacity: Store credentials for up to 1,000 users — ideal for medium to large facilities.
- Built-In Keypad: Dual-authentication option combining card and PIN entry for enhanced access control.
- Wide Operating Range: Card reading distance of 2–10 cm, operating voltage DC 12V, and rated for ambient temperatures of 0℃–60℃.
- CE Certified: Meets CE certification standards for safety and electromagnetic compatibility.
- Compact & Lightweight: Dimensions of 117 × 75 × 20 mm and weighing just 106g — easy to mount on virtually any wall or door frame.
Technical Specifications
| Model | A5D-anti-copy |
| Brand | Asia-Teco |
| Frequency | 125 KHz |
| Card Type | EM(ID) card (IC card available for bulk orders) |

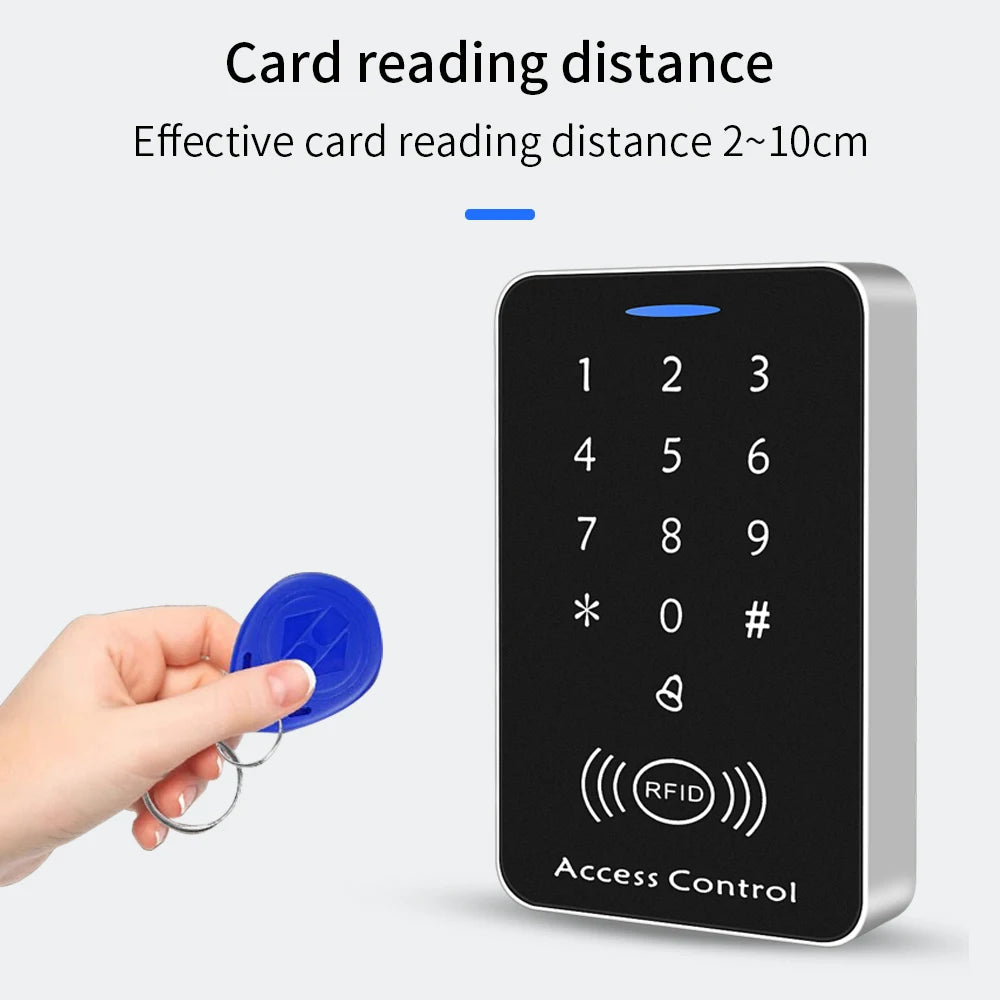

| Card Reading Distance | 2–10 cm |
| Interface | Wiegand |
| User Storage | 1,000 users |
| Operating Voltage | DC 12V ±10% |
| Operating Current | <100 mA |
| Ambient Temperature | 0℃ – 60℃ |
| Relative Humidity | 20% – 80% |
| Dimensions | 117 × 75 × 20 mm |
| Weight | 106 g |
| Certification | CE |
| Country of Origin | Made in Mainland China |
Ideal Applications
- Office buildings & corporate facilities
- Residential apartment complexes
- Warehouses & storage facilities
- Schools & educational institutions
- Gyms, clubs & recreational centers
Learn More About Access Control Standards
For guidance on physical security and access control best practices, visit the National Institute of Standards and Technology (NIST) Cybersecurity & Physical Security Resources.
Frequently Asked Questions
Q: What type of cards does the Asia-Teco 125KHz RFID reader support?
A: The reader supports standard 125KHz EM(ID) cards out of the box. IC card support is available as a customizable option for bulk orders. Always ensure your cards match the 125KHz frequency for compatibility.
Q: How does the anti-duplication feature work on this RFID keypad reader?
A: The A5D-anti-copy model uses encrypted card reading technology to identify and reject cloned or duplicated cards. This makes it significantly more difficult for unauthorized copies of access cards to gain entry, improving overall facility security.
Q: Is the Wiegand interface compatible with my existing access control system?
A: Wiegand is one of the most widely used industry-standard interfaces for access control systems. This reader's Wiegand output is compatible with the vast majority of access controllers, security panels, and door lock systems currently on the market.
Q: How many users can be stored on this access control keypad reader?
A: The reader can store credentials for up to 1,000 users, making it well-suited for medium to large facilities such as office buildings, apartment complexes, and educational institutions.
Q: What power supply does this RFID access control reader require?
A: The unit operates on DC 12V (±10%) with a current draw of less than 100 mA. A standard 12V DC power adapter or access control power supply is recommended for installation.
