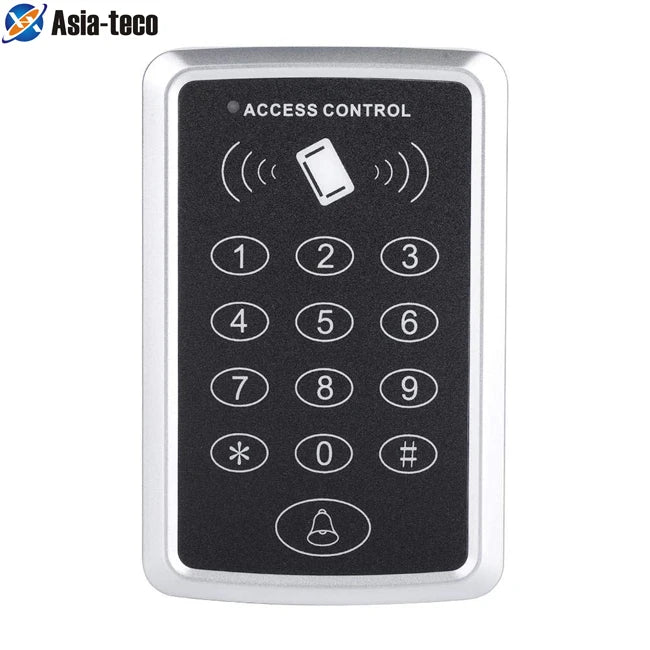

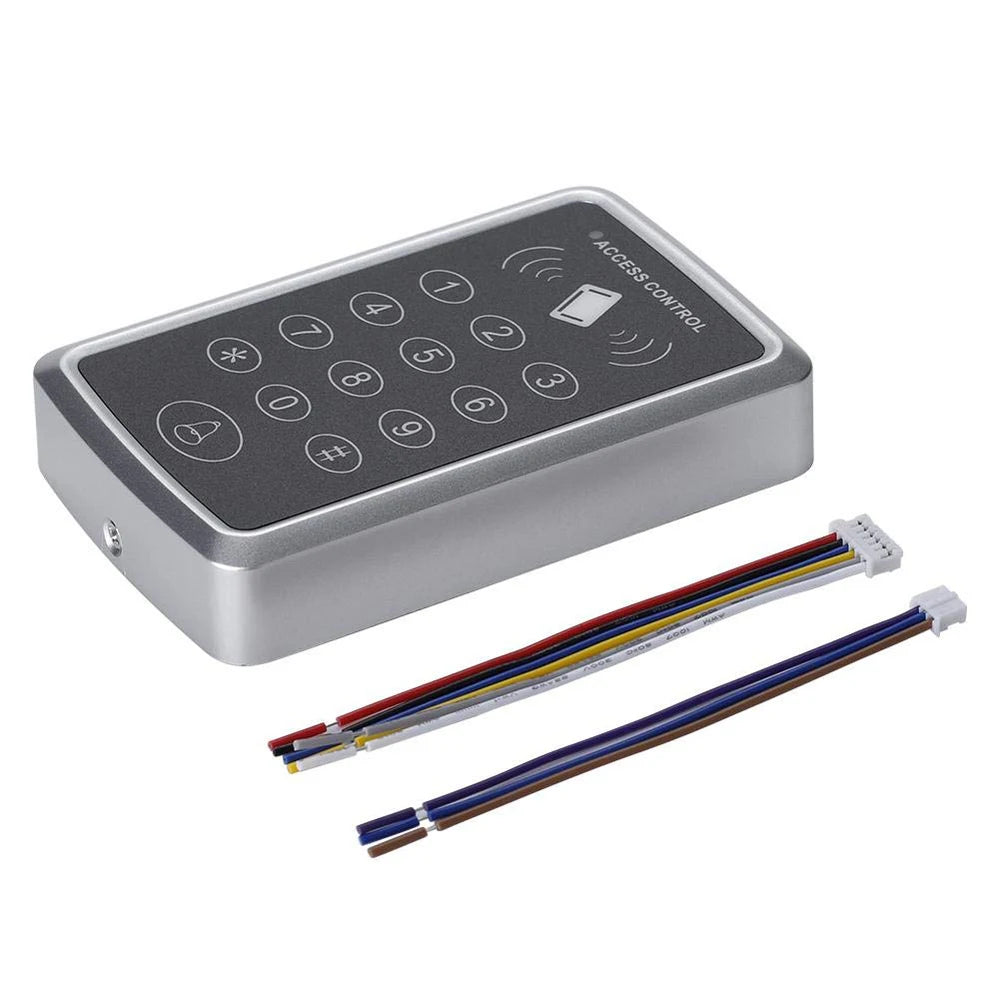

Asia-Teco 125KHz RFID Access Control Keypad — Waterproof, Standalone & Versatile
Upgrade your door security with this reliable 125KHz RFID standalone access control keypad from Asia-Teco. Designed for homes, offices, hotels, and apartments, this weatherproof unit supports up to 1,000 user cards and offers three convenient unlock methods — RFID card, PIN code, or card + PIN combination. A built-in doorbell button adds everyday convenience, and the sleek rainproof housing keeps it performing flawlessly in outdoor environments.
Made in Mainland China.
Key Features
- 3 Unlock Methods: Use an RFID card, a PIN code, or both together for added security
- 1,000-User Capacity: Manage up to 1,000 unique access credentials
- Rainproof / Weatherproof Design: Protective cover makes it suitable for outdoor and semi-outdoor installation
- Standalone Operation: No computer or network connection required — works independently right out of the box
- Built-in Doorbell Button: Combines access control and doorbell functionality in one unit
- Low Power Consumption: Operates on DC 12V with working current under 100mA
- Wide Temperature Range: Functions reliably from -10°C to +60°C (-14°F to 140°F)
- High-Quality Construction: Durable plastic housing with precision internal components and a modern aesthetic
- Fail Safe Security Mode: Defaults to unlocked state in the event of a power failure for safe egress
Product Specifications
| Brand | Asia-Teco |

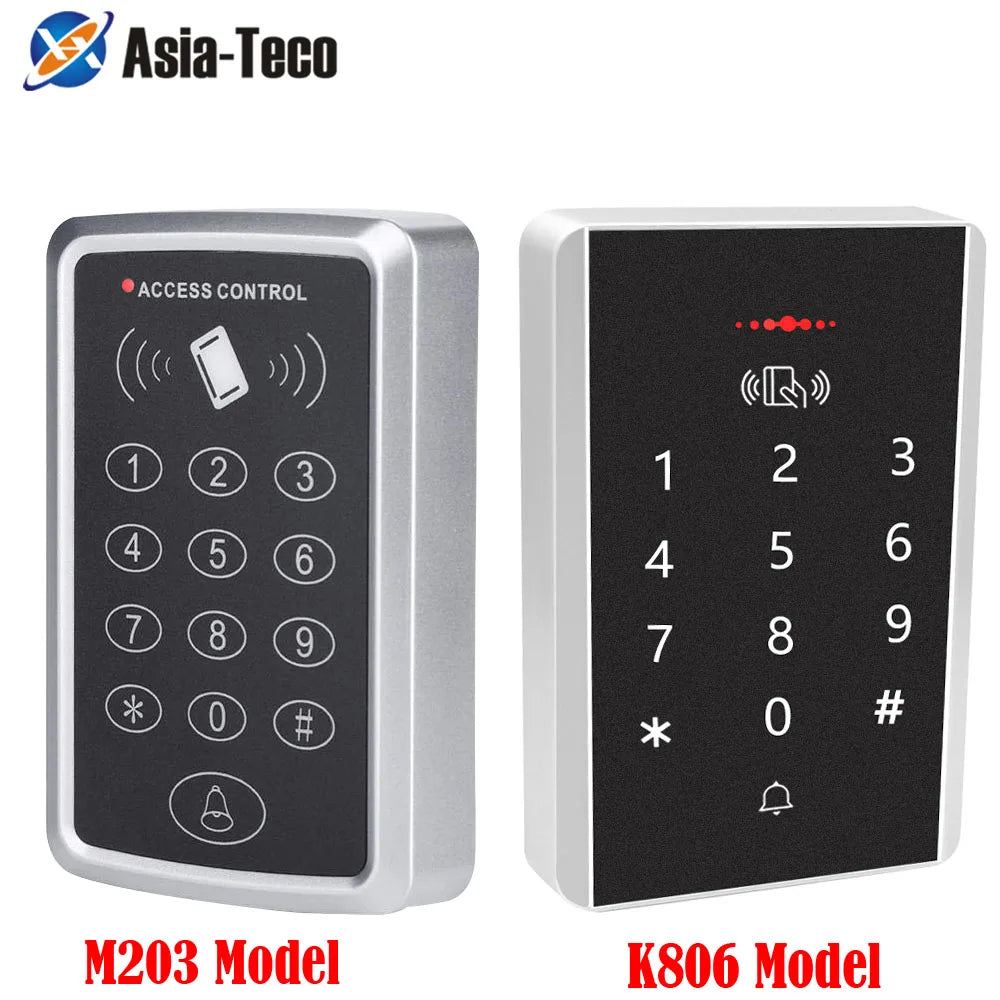

| Model | M203/K806-EM |
| Working Frequency | 125KHz |
| User Capacity | 1,000 user cards |
| Dimensions | 120 × 78 × 20 mm (L × W × H) |
| Working Voltage | DC 12V |
| Working Current | <100mA |
| Working Temperature | -10°C to +60°C |
| Reading Distance | 0–10 cm |
| Relative Humidity | 20%–90% |
| Security Mode | Fail Safe |
| Origin | Mainland China |
Ideal Applications
This RFID keypad access controller is perfectly suited for a wide range of entry points:
- Residential front doors and gates
- Office and co-working space entrances
- Hotel room doors
- Apartment building common areas
- Warehouse and storage facility access points
Safety & Installation Resources
For best practices on installing and maintaining electronic access control systems, visit the U.S. Consumer Product Safety Commission (CPSC) for guidance on safe electrical product installation.
Frequently Asked Questions
Q: Does this 125KHz RFID access control keypad require a computer or internet connection to operate?
A: No. This is a fully standalone access control unit. It stores up to 1,000 user credentials onboard and operates entirely without a computer, smartphone app, or network connection, making setup simple and installation flexible.
Q: What types of credentials does this RFID keypad support?
A: The keypad supports three unlock methods: RFID card swipe only, PIN code entry only, or a combination of card + PIN for two-factor access control. It is compatible with standard 125KHz EM format RFID cards and key fobs.
Q: Is this access control keypad suitable for outdoor installation?
A: Yes. The unit features a rainproof protective cover and is rated for operating temperatures from -10°C to +60°C with relative humidity of 20%–90%, making it well-suited for outdoor doorways, gates, and covered entryways.
Q: What does "Fail Safe" security mode mean?
A: In Fail Safe mode, the connected lock defaults to the unlocked (open) position if power is lost. This is a common safety design for exit doors to ensure occupants can always leave the building in an emergency or power outage.
Q: How many users can be programmed into this keypad?
A: This unit supports up to 1,000 individual user cards or credentials, making it suitable for small to medium-sized businesses, apartment buildings, and shared office spaces.
