125KHz RFID Access Control Keypad | EM Card Reader + 10 Keyfobs
125KHz RFID Access Control Keypad | EM Card Reader + 10 Keyfobs
125KHz RFID Access Control Keypad — Secure, Standalone Door Entry System
Take control of who enters your home, office, apartment, or facility with this reliable 125KHz RFID Access Control Keypad. Featuring a built-in EM card reader and three flexible unlocking methods, this standalone unit requires no PC connection and supports up to 1,000 registered users. The rainproof housing makes it equally at home indoors or outdoors, while the included keyfobs get you up and running right away.
Key Features
- Three Unlocking Methods: Use an RFID card, a numeric password, or a combination of card + password for enhanced security.
- Supports 1,000 Users: Register up to 1,000 unique RFID cards or keyfobs — ideal for offices, apartment buildings, and hotels.
- Standalone Operation: No computer or network connection required; programs and operates completely independently.
- Rainproof Outdoor Cover: Weather-resistant housing keeps the keypad protected in all conditions.

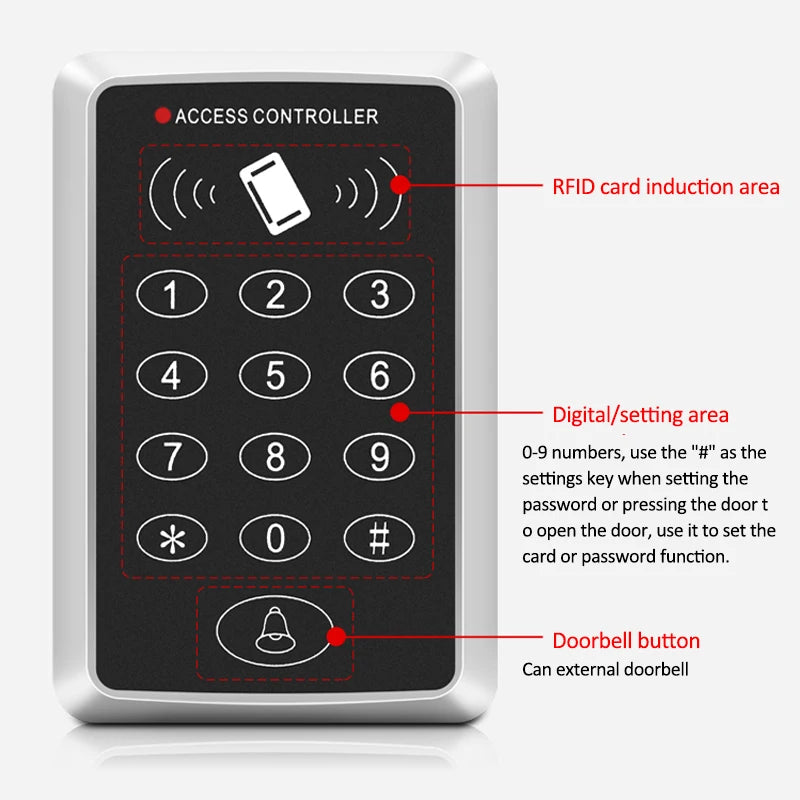

- Built-in Doorbell Button: Easily connect an external doorbell for added convenience.
- Anti-Tamper Alarm: Configurable tamper-detection alarm helps deter unauthorized removal (model-dependent).
- Low Power Consumption: Operates on DC 12V with a working current under 100mA — energy-efficient and cost-effective.
- Fast, Sensitive Response: RFID reading distance of 1–5 cm ensures quick, reliable card detection every time.
- Includes 10 Keyfobs: Get started immediately with ten 125KHz EM keyfobs included in the package.
Technical Specifications
| Working Frequency | 125KHz |
| User Capacity | 1,000 user cards |
| Unlocking Modes | Card / Password / Card + Password |
| Working Voltage | DC 12V |
| Working Current | <100mA |
| Reading Distance | 1–5 cm |
| Dimensions | 120mm × 78mm × 22mm (L × W × H) |
| Working Temperature | -10°C to +60°C |
| Relative Humidity | 20%–90% |
| Model | XM-F007 |
| Country of Origin | Made in Mainland China |
What's in the Box?
- 1 × 125KHz RFID Access Control Keypad (XM-F007)
- 10 × 125KHz EM Keyfobs
- 1 × Rainproof Outdoor Cover
- Mounting hardware & wiring guide
Note: Power supply, electric lock, and exit button are NOT included and must be purchased separately.

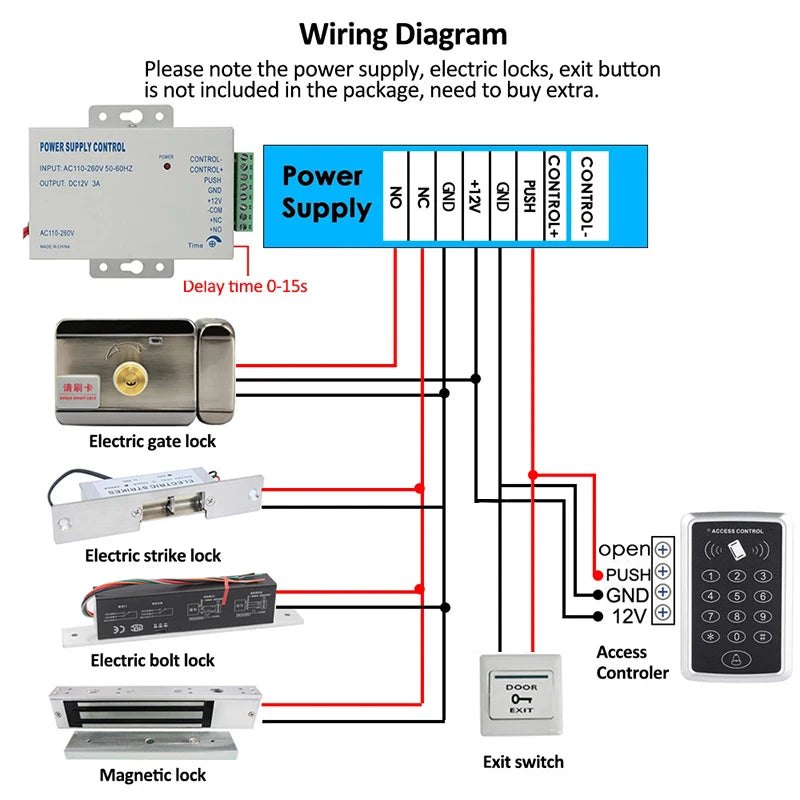

Wiring Overview
- Red wire: Power supply +12V
- Black wire: Power supply GND
- Green wire: PUSH (exit button connection)
Additional sockets allow connection to automatic doors or barrier gate systems for versatile integration.
Applications
This access control keypad is suited for a wide range of environments, including:
- Homes & residential doors
- Offices & commercial premises
- Hotels & apartments
- Warehouses & storage facilities
- Barrier gates & automatic door systems
Security Resources
For guidance on physical security best practices for homes and businesses, visit the Cybersecurity and Infrastructure Security Agency (CISA). For general consumer protection tips on electronic security products, refer to the Federal Trade Commission Consumer Information page.
Frequently Asked Questions
Q: Does the 125KHz RFID access control keypad require a computer or internet connection to operate?
A: No. The XM-F007 is a fully standalone access control system. All programming — including adding or deleting user cards, setting passwords, and configuring unlock time — is done directly on the keypad using the numeric buttons. No PC, smartphone app, or network connection is needed.
Q: What types of RFID cards or keyfobs are compatible with this access control keypad?
A: This keypad operates at 125KHz and is compatible with standard EM-format RFID cards and keyfobs. The system comes with 10 keyfobs included. Additional 125KHz EM cards or keyfobs can be registered to the system (up to 1,000 total users).
Q: Can I use this RFID keypad outdoors?
A: Yes. The unit includes a rainproof outdoor cover, making it suitable for outdoor door entry installations. It operates reliably across a temperature range of -10°C to +60°C and a relative humidity of 20%–90%.
Q: What happens if a keyfob or card is lost?
A: Each registered card is assigned a unique 3-digit user code (001–999) at the time of enrollment. If a card is lost, you can delete it by entering the programming mode and using either the user code or the card-swipe deletion method, ensuring that lost cards can no longer be used to unlock the door.
Q: Is the electric lock or power supply included with this access control system?
A: No. The power supply, electric lock, and exit button are not included in the package and must be purchased separately. The keypad requires a DC 12V power supply to operate.
