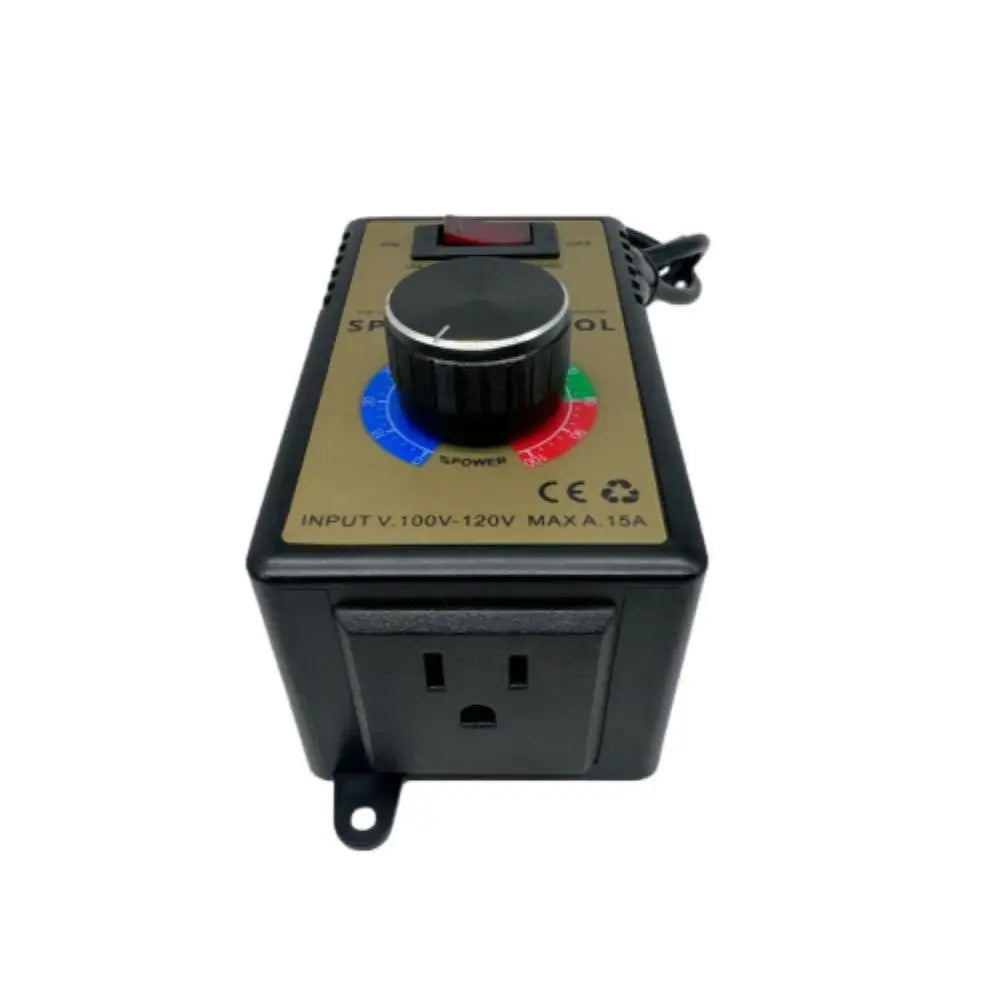

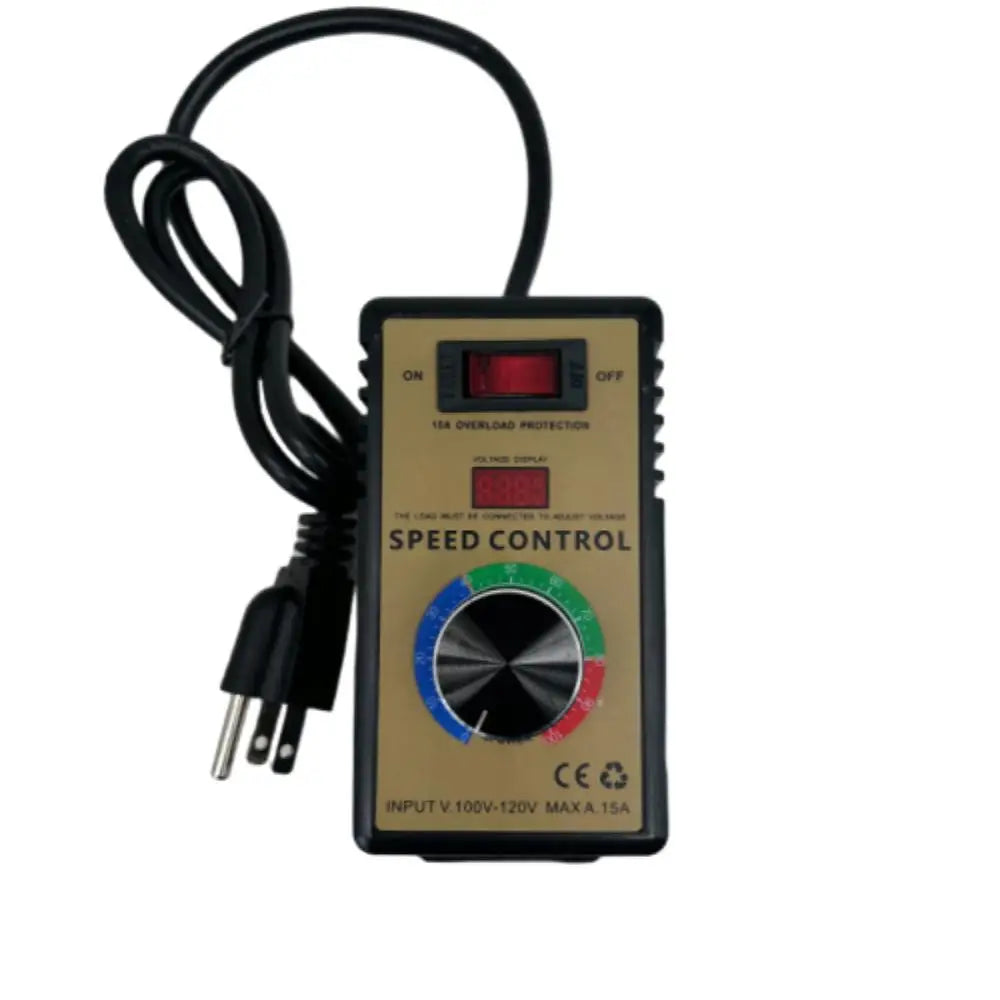

15A Stepless Speed Control Switch & Voltage Regulator 120V
15A Stepless Speed Control Switch & Voltage Regulator 120V
110/120V 15A Stepless Speed Control Switch & Voltage Regulator
Take full control of your fans, power tools, lighting, and heating appliances with this versatile 15A Stepless Speed Control Switch and Voltage Regulator. Featuring a smooth rotary knob for seamless, stepless adjustment, this US-plug device lets you precisely dial in the speed, brightness, or heat output of compatible devices — all in one compact, easy-to-use unit.
Key Features
- Wide Compatibility: Suitable for fans, brushed motors, power tools (without built-in speed control), tungsten/incandescent/halogen lamps, lamp strips, electric stoves, ovens, water heaters, heating rods, and electric blankets.
- Stepless Control: Smooth, continuous knob adjustment — no steps or jumps — for precise output tuning.
- Overload Protection: Built-in 15A overload protection circuit helps safeguard both the regulator and your connected devices.
- Voltage Display: Integrated output voltmeter lets you monitor the output voltage in real time (load must be connected for accurate reading).
- Multiple Functions: Speed regulation, voltage regulation, temperature regulation, and light dimming — all in one device.
- US Standard Plug: Designed for North American 110/120V AC outlets. Ready to use right out of the box.
- Durable Plastic Housing: Lightweight yet sturdy construction for reliable everyday use.
Specifications
- Input Voltage: AC 110/120V
- Rated Current: 15A
- Peak Module Power: 4000W
- Max Resistive Load: 2000W
- Max Inductive Load: 500W
- Max Capacitive Load: 300W
- Plug Type: US Standard (2-pin)
- Material: Plastic
- Country of Origin: Made in China
How to Use
- Before plugging in, rotate the knob to the "0" position.
- Connect the power cord to a standard AC 120V wall outlet. The voltmeter will display the output voltage.
- Plug your device into the output socket.
- Slowly rotate the knob clockwise to increase voltage/speed/brightness, or counter-clockwise to decrease.
- When finished, return the knob to "0" before unplugging or restarting high-wattage appliances.
Important Usage Notes
- This regulator works with AC input and AC output only. The maximum output equals the maximum input voltage.
- Not compatible with smart/electronic-controlled appliances such as household water pumps with electronics, induction cookers, rice cookers, or LED energy-saving lamps with circuit boards.
- For fans over 550W, do not reduce speed below half the rated speed.
- For appliances over 1000W, always turn the knob to "0" before the next startup to avoid excessive inrush current.
- Keep away from children, open flames, and moisture. For indoor dry environments only. Not waterproof — avoid use near sinks, bathtubs, fish tanks, or other wet areas.
- Do not insert any object other than a standard plug into the output socket.
Compatible Applications
- Speed Control: Fans, brushed motors, power tools (without built-in speed control)
- Temperature Control: Electric stoves, ovens, water heaters, heating rods, electric blankets (non-smart/non-digital types)
- Dimming: Tungsten lamps, incandescent bulbs, halogen lamps, heat-preservation lamps, LED lamp strips (non-circuit-board LED types)
What's in the Box
- 1× Stepless Speed Control Switch / Voltage Regulator
For more information on electrical safety standards and best practices for consumer electrical devices, visit U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What types of devices can I control with this stepless speed control switch?
A: This voltage regulator is compatible with fans, brushed motors, power tools (without built-in speed control), incandescent/tungsten/halogen lamps, lamp strips, electric stoves, ovens, water heaters, heating rods, and electric blankets. It is not suitable for smart appliances, induction cookers, rice cookers, or LED lamps with integrated circuit boards.
Q: Is this speed control switch safe for high-wattage appliances?
A: The unit supports a peak module power of 4000W, but for safe, continuous operation the maximum recommended load is 2000W for resistive loads, 500W for inductive loads, and 300W for capacitive loads. Built-in 15A overload protection adds an extra layer of safety. Always turn the knob to "0" before starting appliances rated above 1000W.
Q: Can I use this regulator outdoors or in wet environments?
A: No. This product has no waterproofing and is designed for indoor, dry environments only. Avoid use near sinks, bathtubs, fish tanks, kitchens, or any area where water splashing may occur.
Q: Will this dimmer work with LED bulbs?
A: It works with LED lamp strips and simple LED lamps without an internal circuit board. Standard LED energy-saving bulbs that contain electronic driver boards are not compatible with this regulator and may not respond to adjustment or could be damaged.
