120-Piece T-Tap Wire Connectors – No-Strip Quick Crimp Splice Terminals
Tackle any wiring project faster and safer with this comprehensive 120-piece T-Tap Connector kit. No wire-stripping required — simply press the clamp down onto the wire and you get a secure, insulated splice in seconds. The waterproof, high-impact plastic housing shields every connection from moisture and accidental contact, making these terminals ideal for automotive, marine, home electrical, and DIY electronics work.
Made in Mainland China.

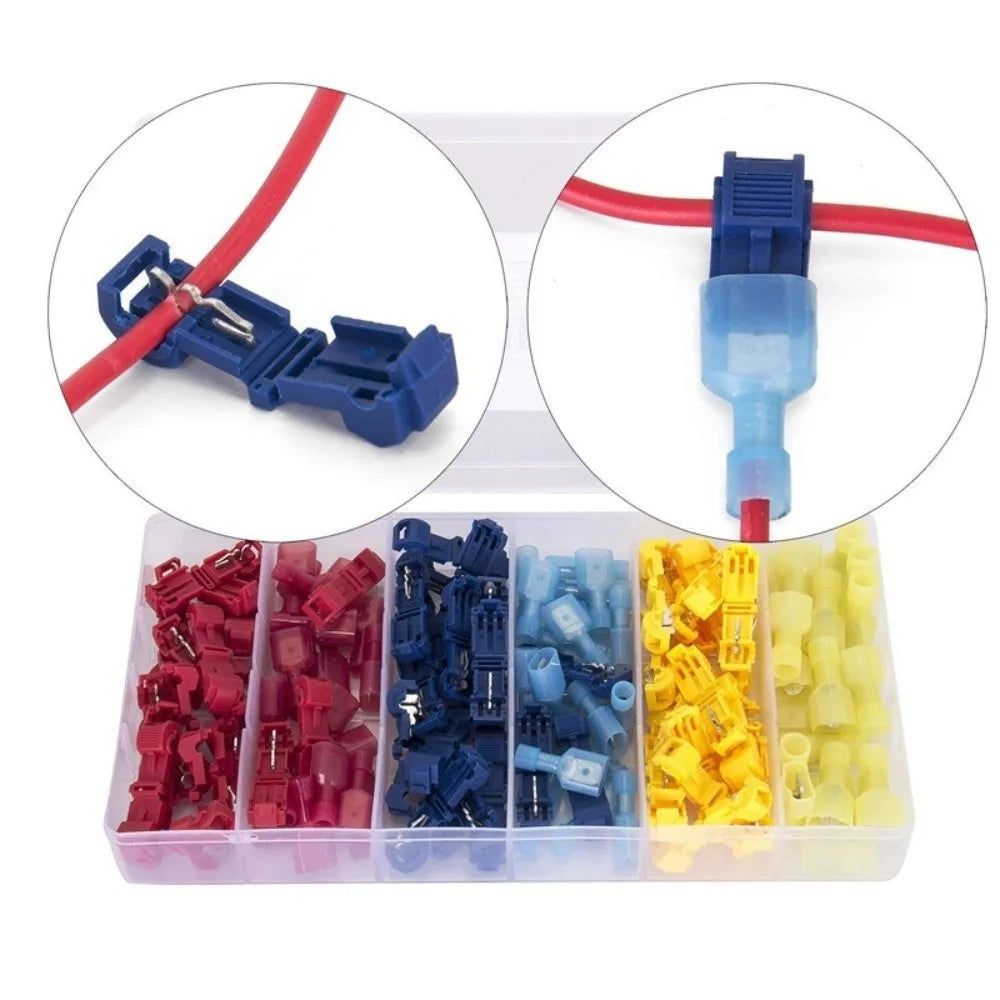

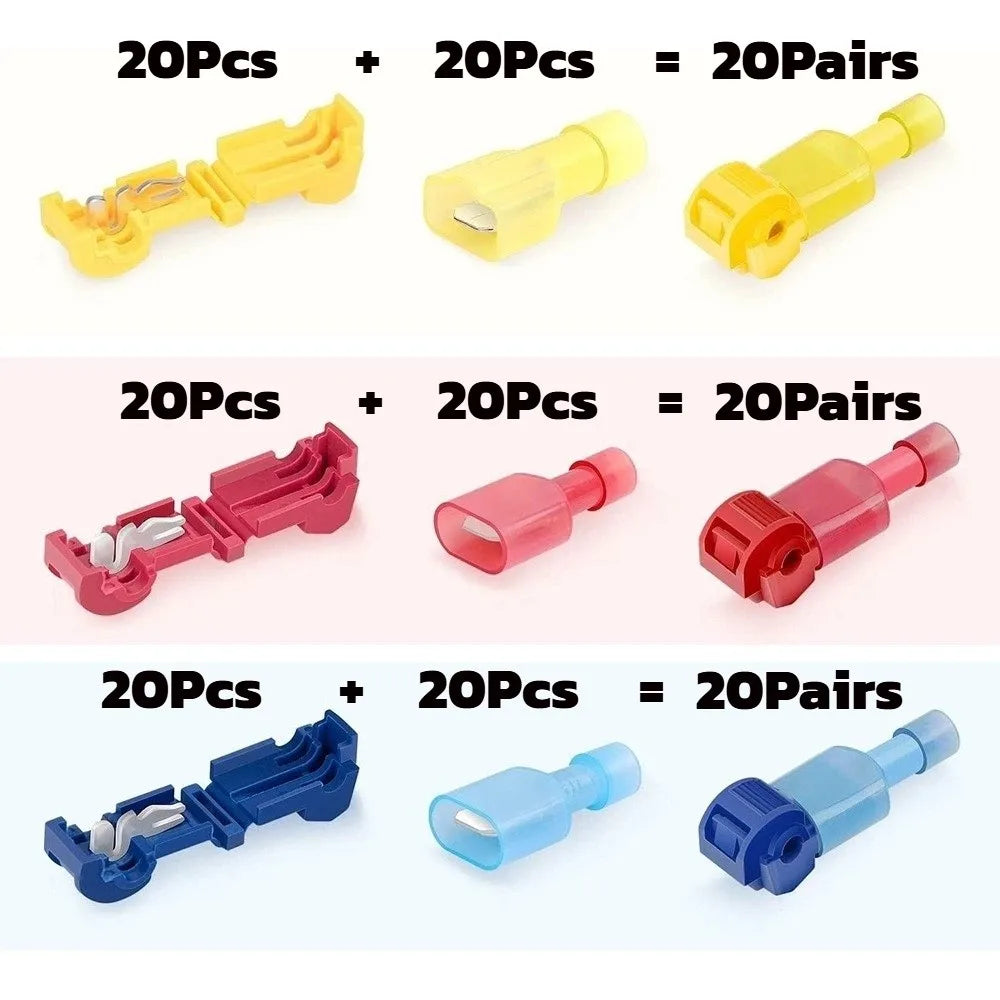

What's in the Box
- Red (40 pcs / 20 pairs) — AWG 22–16 | Wire range: 0.5–1.5 mm² | Max current: 10 A
- Blue (40 pcs / 20 pairs) — AWG 16–10 | Wire range: 1.5–2.5 mm² | Max current: 15 A
- Yellow (40 pcs / 20 pairs) — AWG 12–10 | Wire range: 4–6 mm² | Max current: 24 A
Key Features

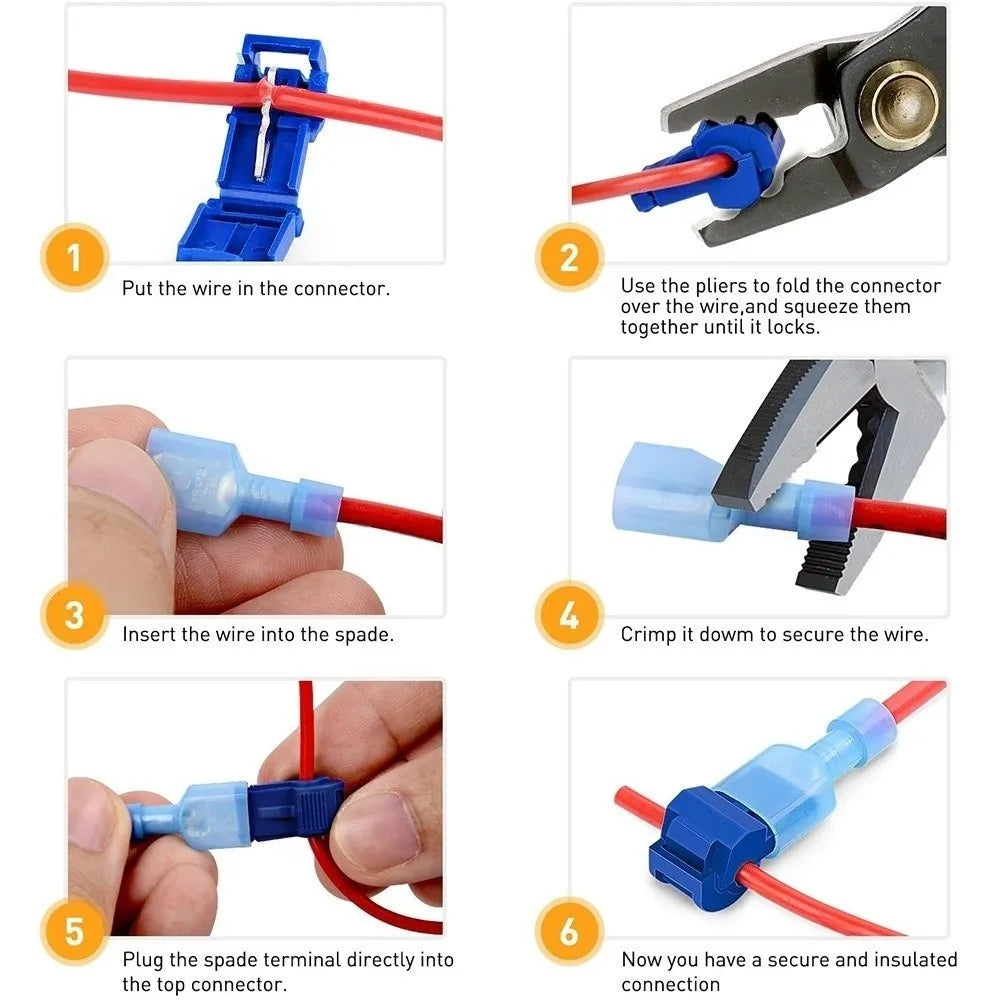

- No-Strip Installation: Press, don't cut — the built-in blade pierces the insulation for a clean, reliable connection without damaging wire strands.
- Safety-First Housing: Sturdy insulated outer shell prevents accidental contact with live conductors, reducing the risk of electric shock.
- T-Shape Versatility: Branch a new wire off an existing circuit anywhere along its run — no need to access wire ends.
- Color-Coded Sizing: Red, blue, and yellow color coding makes it easy to match the connector to the correct wire gauge at a glance.
- Waterproof Clamp Design: Sealed construction keeps connections dry and corrosion-resistant for long-term durability indoors or outdoors.
- Wide Compatibility: Suitable for automotive wiring, trailer lighting, home appliances, marine electronics, and more.
Specifications
| Type | T-Tap Crimp Connector |
| Material | Insulated Plastic |
| Colors | Red / Blue / Yellow |
| Unit Size | 3.7 × 1 cm (1.46 × 0.39 in) |
| Max Current | 10 A / 15 A / 24 A (by color) |
| Voltage | Low voltage: Below 50 V AC or 75 V DC |
| Quantity | 120 pcs (40 each color) |
| Origin | Mainland China |
For general electrical safety guidelines, visit the U.S. Consumer Product Safety Commission – Electrical Safety.
Frequently Asked Questions
Q: Do I need to strip the wire before using these T-Tap connectors?
A: No wire stripping is required. The T-Tap connector features a built-in piercing blade that cuts through the wire's insulation when you press the clamp shut, creating a solid electrical connection instantly without any additional tools.
Q: How do I know which color T-Tap connector to use for my wire gauge?
A: Use the color-coded system: Red connectors suit AWG 22–16 (0.5–1.5 mm²) wires up to 10 A; Blue connectors suit AWG 16–10 (1.5–2.5 mm²) up to 15 A; Yellow connectors suit AWG 12–10 (4–6 mm²) up to 24 A. Always match the connector to the gauge of your wire for a safe, secure connection.
Q: Are these T-Tap connectors suitable for outdoor or automotive use?
A: Yes. The waterproof clamp-type design and robust insulated housing make these connectors well-suited for automotive wiring, trailer lighting, marine electronics, and outdoor electrical installations where moisture resistance is important.
Q: Can I reuse these connectors if I need to change a connection?
A: T-Tap connectors are designed for permanent splicing. While they can sometimes be carefully removed, they are intended as single-use terminals for the most reliable and secure connection. For temporary applications, a reusable connector type is recommended.
