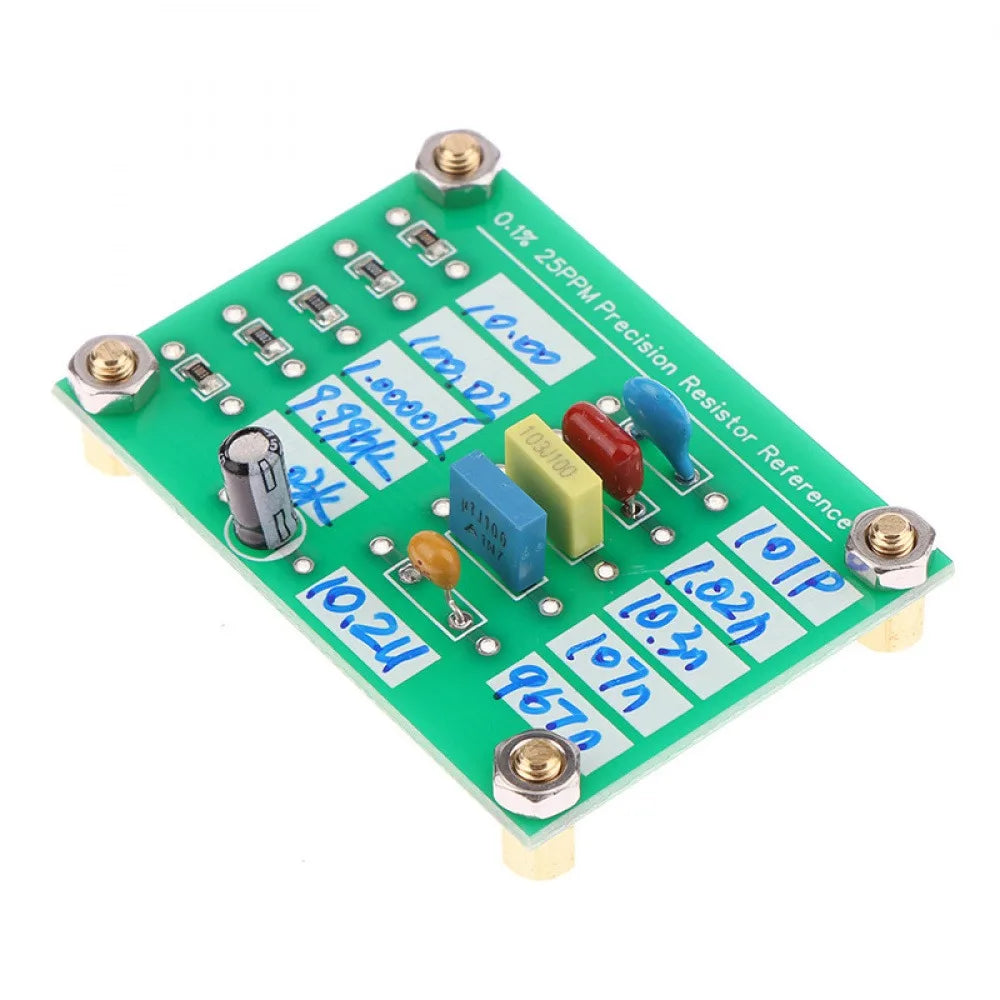

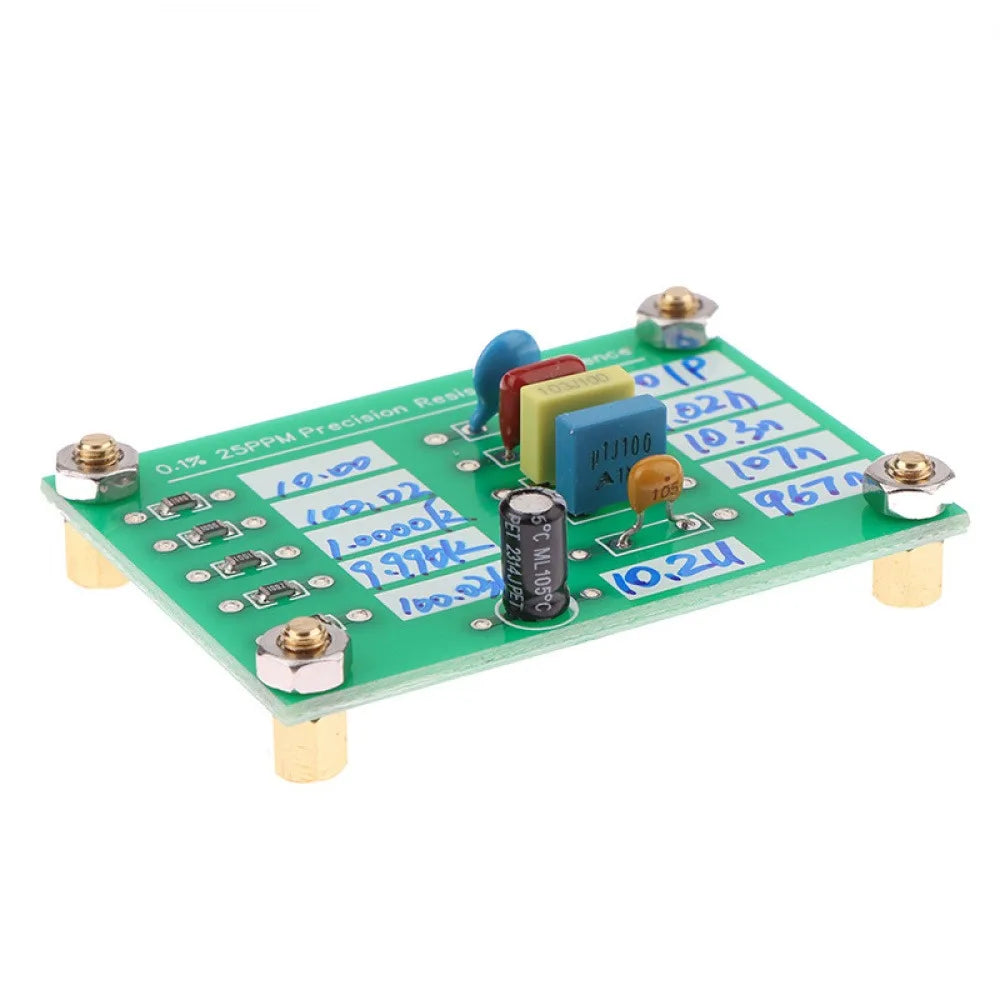

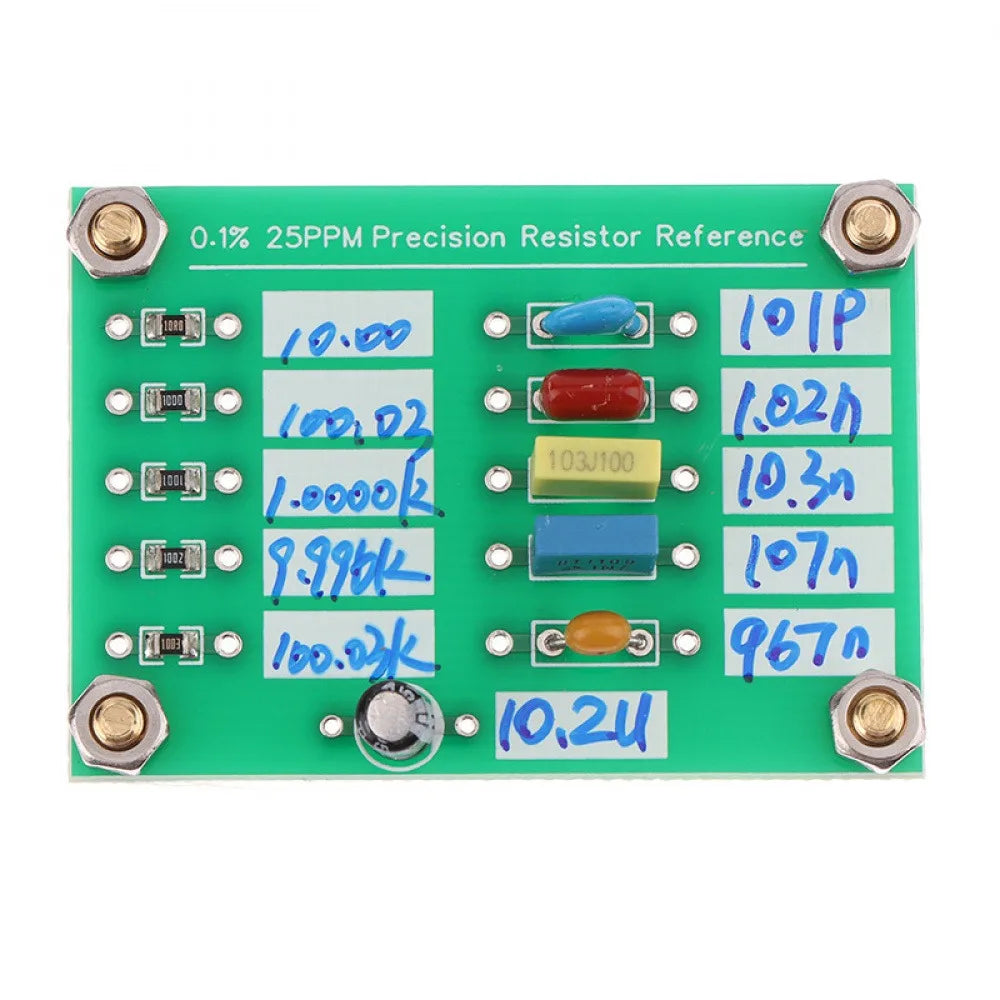

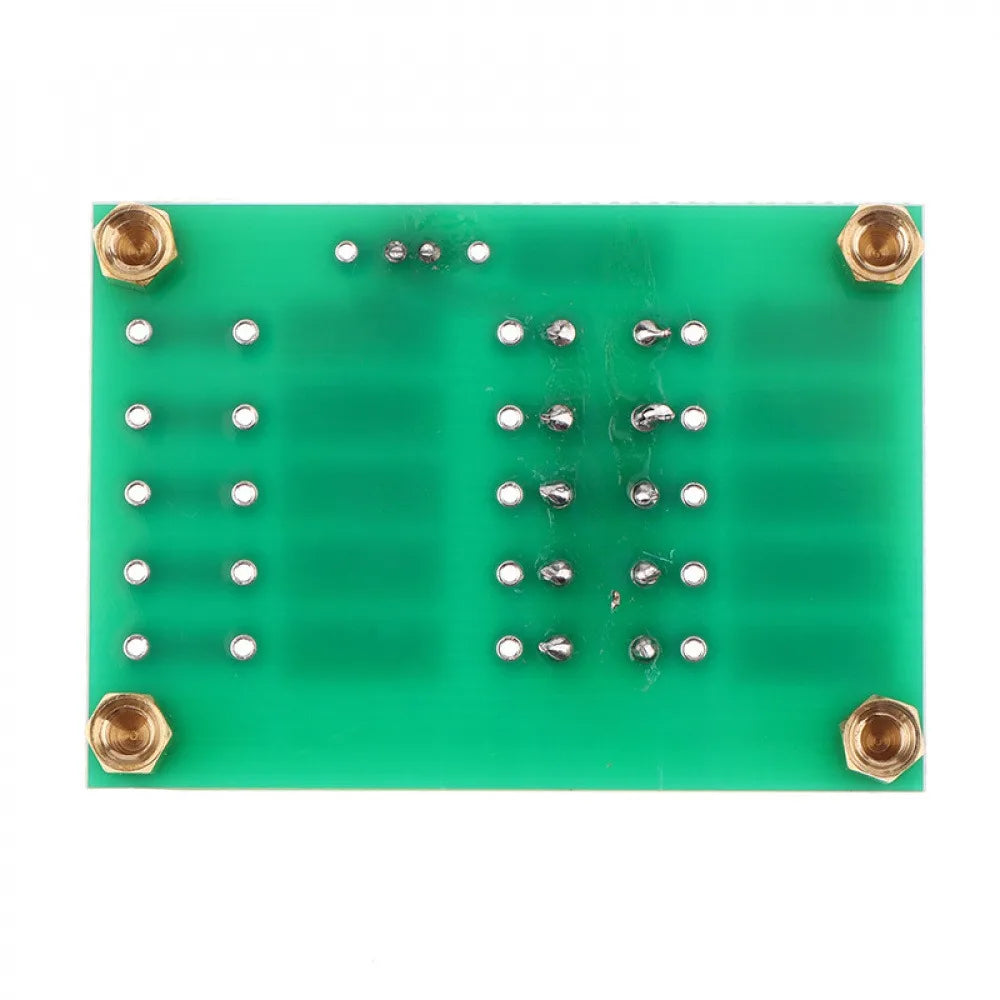

10V Precision Voltage Reference Board — AD584 / LM399 Compatible
Achieve accurate, repeatable multimeter calibrations with this compact Precision Resistance Reference Board. Designed to work seamlessly with AD584 and LM399 voltage reference ICs, this 10V reference board gives electronics engineers, hobbyists, and technicians a reliable benchmark for verifying and calibrating digital multimeters and other precision test equipment.
Key Features
- Compatible with AD584 & LM399 — works with popular high-precision voltage reference ICs for accurate 10V output
- High-Quality PCB Construction — built on a green PCB substrate for durability and stable electrical performance
- Compact Form Factor — measures just 50mm × 30mm, fitting neatly into any bench setup or project enclosure
- Precision Resistance Reference — ensures a stable, repeatable reference point for multimeter verification and calibration workflows
- Easy Integration — straightforward board layout makes it simple to connect into your existing calibration setup
Specifications
- Material: PCB
- Color: Green
- Size: 50mm × 30mm
- Reference Voltage: 10V
- Compatible ICs: AD584, LM399
Package Includes
- 1× Precision Resistance Reference Board
Notes
- Due to differences in lighting and screen settings, the actual color may vary slightly from product images.
- Please allow a tolerance of 1mm–10mm due to manual measurement.
Made in Mainland China.
For best practices in electrical measurement and calibration, refer to the NIST Calibration Programs resource for guidance on traceable measurement standards.
Frequently Asked Questions
Q: What voltage reference ICs is this precision reference board compatible with?
A: This precision resistance reference board is designed to work with AD584 and LM399 voltage reference ICs, both of which are widely used in high-accuracy 10V reference and multimeter calibration applications.
Q: What is the board size and what is it made of?
A: The board measures 50mm × 30mm and is constructed from a standard green PCB (Printed Circuit Board) material, providing a stable and durable platform for precision reference applications.
Q: Can I use this board to calibrate digital multimeters?
A: Yes. This board is specifically intended as a precision voltage and resistance reference tool to assist in the calibration and verification of digital multimeters and similar test instruments, ensuring your readings are accurate and traceable to a known reference point.
