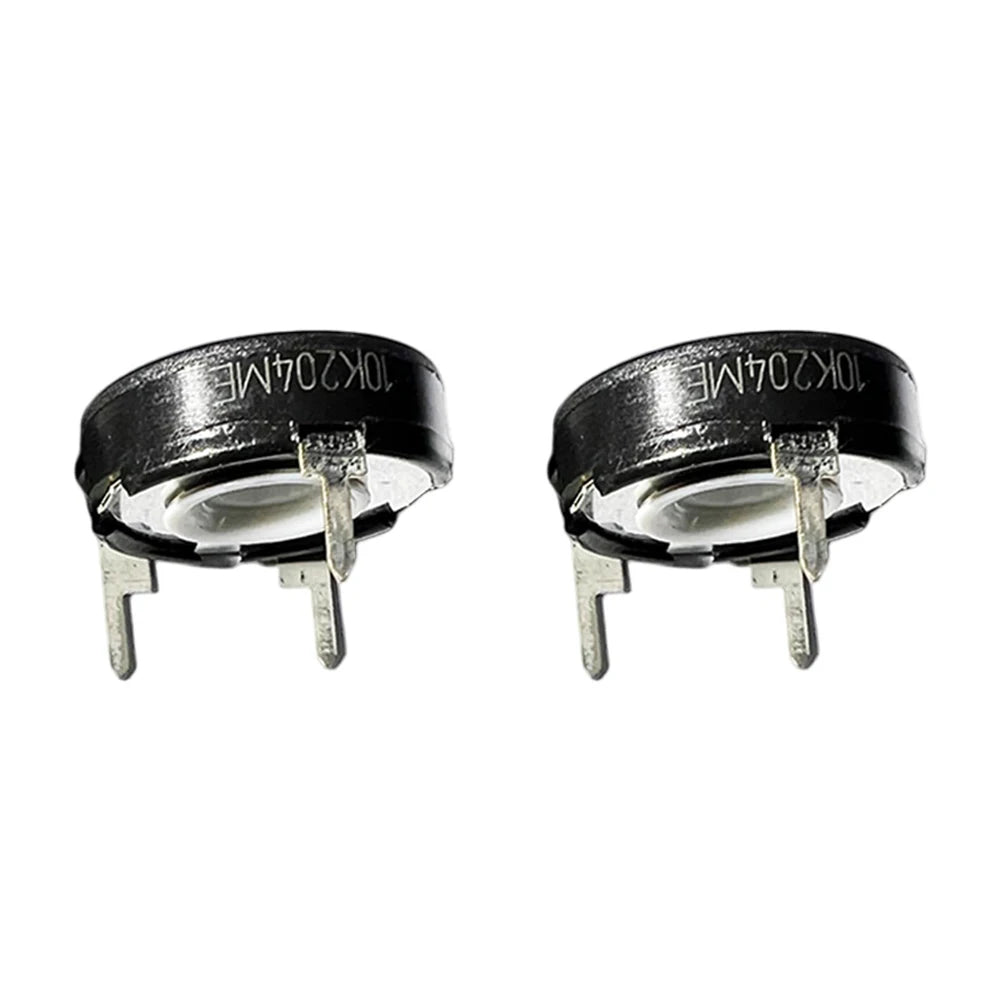

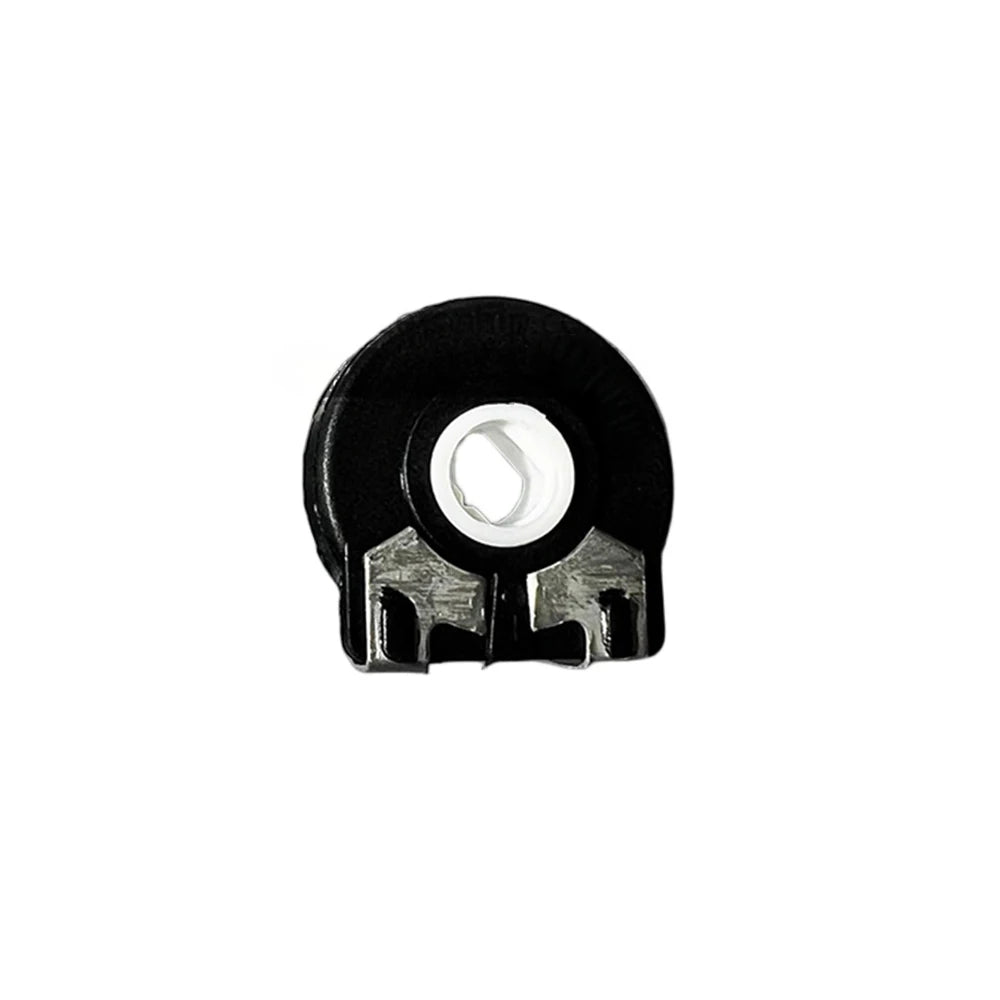

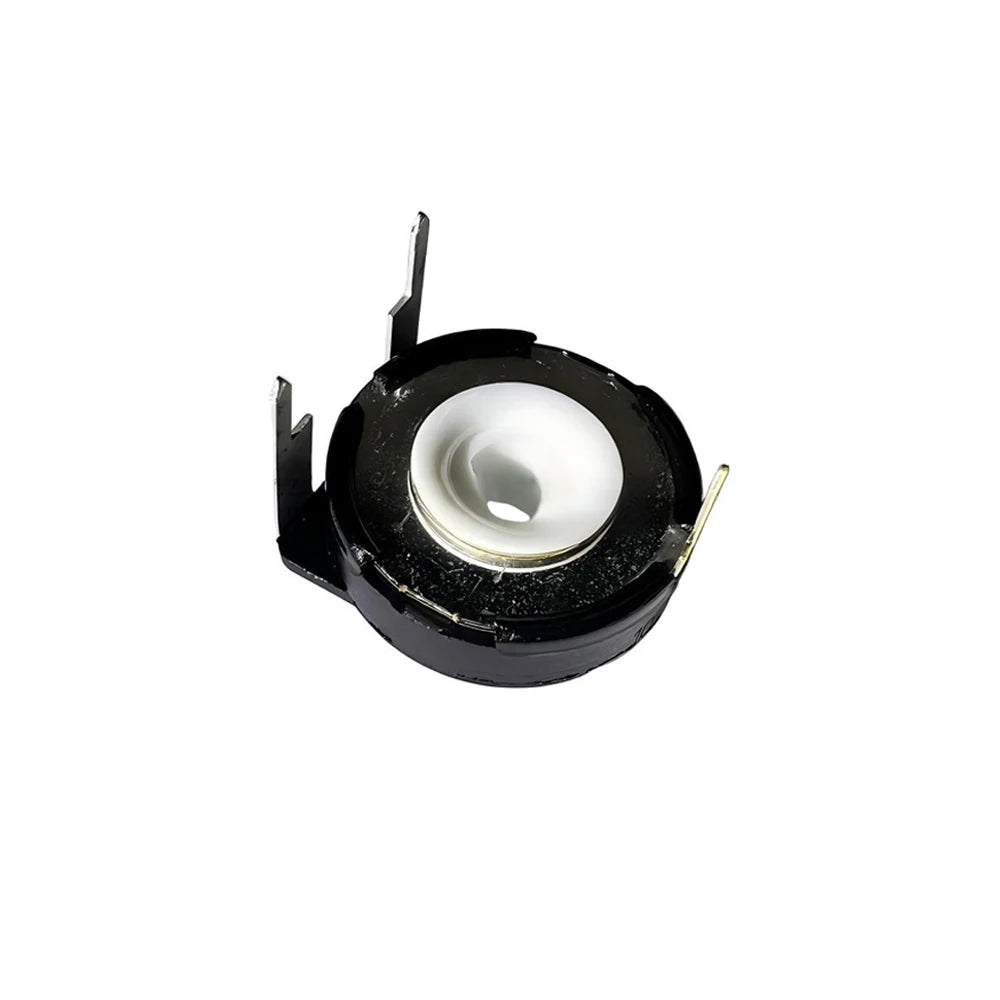

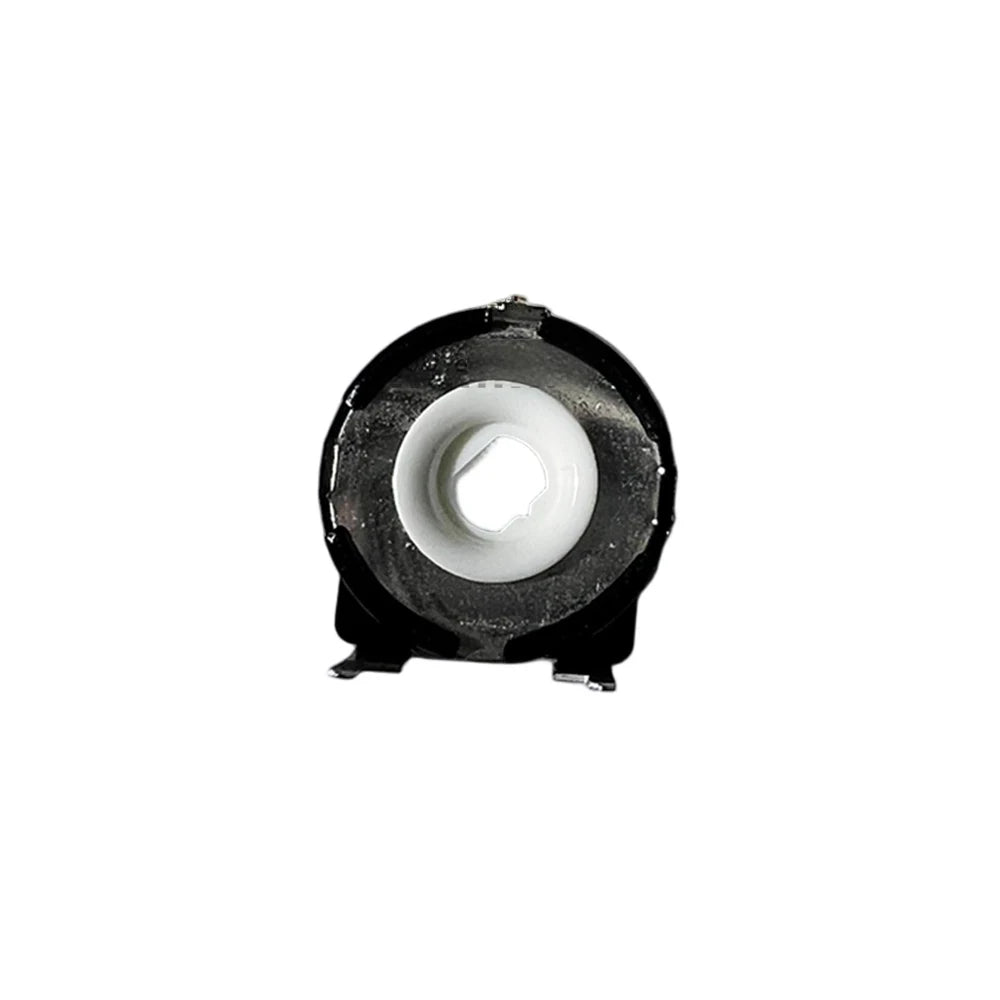

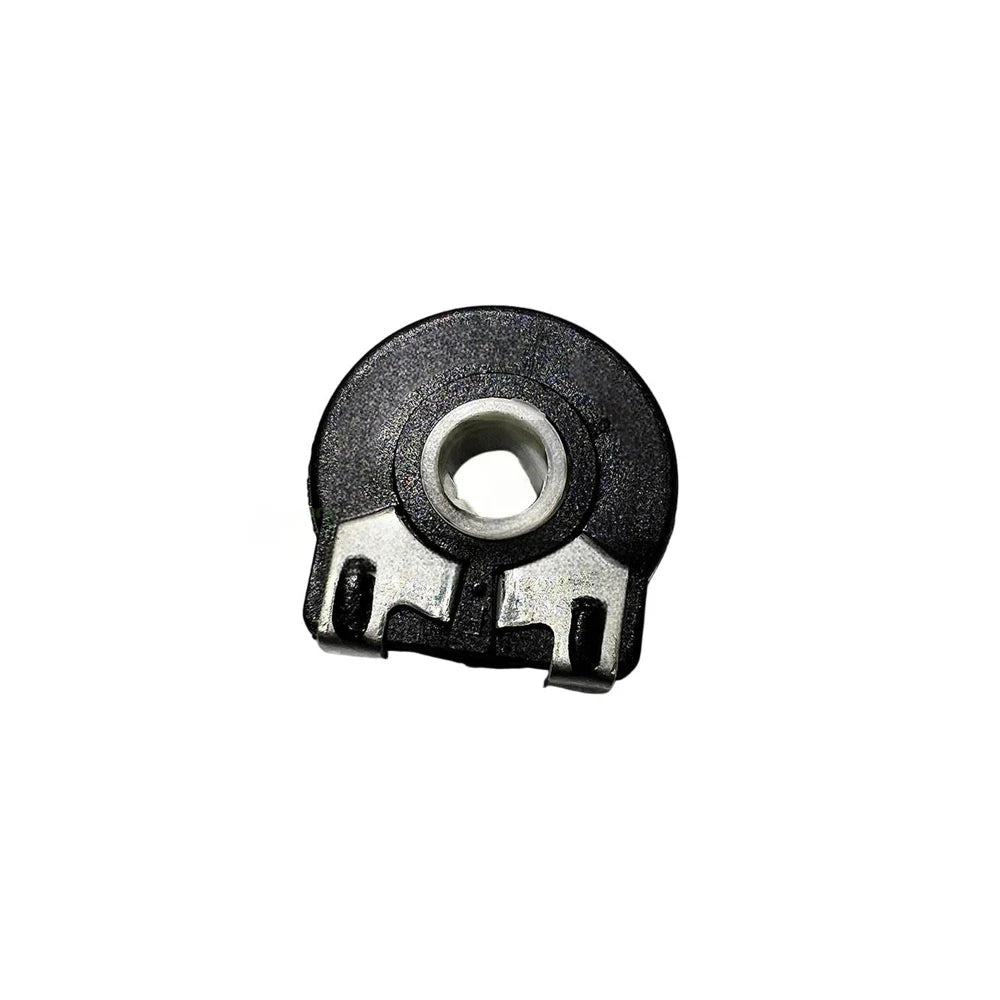

2-Pack 10K Ohm Vertical Adjustable Potentiometer — PT15NV15-103A-E
Upgrade your electronics projects with this convenient 2-piece set of PT15NV15-103A-E vertical adjustable potentiometers. With a 10K Ohm resistance value, these compact through-hole trimmers are ideal for DIY electronics, circuit tuning, audio equipment, and prototyping work. Their vertical mounting orientation saves board space and makes manual adjustment easy and precise.
Key Specifications
- Resistance Value: 10K Ohm (103)
- Model: PT15NV15-103A-E / PT15-10K
- Max. Voltage: 250 VDC (linear) / 125 VDC (non-linear)
- Nominal Power at 50°C (122°F): 0.25 W (linear) / 0.12 W (non-linear)
- Taper: Linear (Lin), Logarithmic (Log), Anti-Logarithmic (Alog) — Log & Alog only for Rn ≥ 1KΩ
- Residual Resistance: ≤ 0.5% Rn (5Ω min.)
- Equivalent Noise Resistance: ≤ 3% Rn (3Ω min.)
- Operating Temperature: -25°C to +70°C (-13°F to +158°F)
- Mounting Type: Vertical / Through-hole
- Package Contents: 2 × PT15NV15 Potentiometer
Why Choose These Potentiometers?
- ✅ Precise resistance adjustment for accurate circuit tuning
- ✅ Vertical profile keeps your PCB layout clean and compact
- ✅ Wide operating temperature range for reliable performance in varied environments
- ✅ Low noise for clean signal control in audio and sensor applications
- ✅ Pack of 2 — great value for prototyping and repairs
Typical Applications
- Audio volume and tone control circuits
- DIY electronics and Arduino/microcontroller projects
- Signal attenuation and voltage divider circuits
- Sensor calibration and trimming
- PCB prototyping and repair work
Made in Mainland China.
Note: Due to differences in lighting and screen calibration, the item's color may appear slightly different from the product images. Please allow a 1mm–1cm tolerance due to manual measurement.
For further reading on potentiometers and electronic components, visit the NIST Electrical Measurements resources for standards and reference information on electronic measurement components.
Frequently Asked Questions
Q: What is the resistance value of these vertical potentiometers?
A: Each PT15NV15-103A-E potentiometer in this 2-pack has a resistance value of 10K Ohm (10,000 Ohms), making them suitable for a wide range of signal-control and voltage-dividing applications in electronics projects.
Q: What mounting style do these PT15-10K potentiometers use?
A: These are vertical through-hole potentiometers, meaning the adjustment shaft stands upright (perpendicular to the PCB). This orientation is ideal for compact board layouts where horizontal clearance is limited.
Q: Are these potentiometers suitable for audio circuit applications?
A: Yes. With a low equivalent noise resistance of ≤3% Rn (3Ω minimum) and available taper options including linear and logarithmic curves, these 10K potentiometers are well-suited for audio volume control, tone shaping, and other signal-processing circuits.
Q: What is the maximum operating voltage for these potentiometers?
A: The maximum voltage rating is 250 VDC for the linear taper and 125 VDC for the non-linear taper. Always ensure your circuit voltages remain within these limits for safe and reliable operation.
