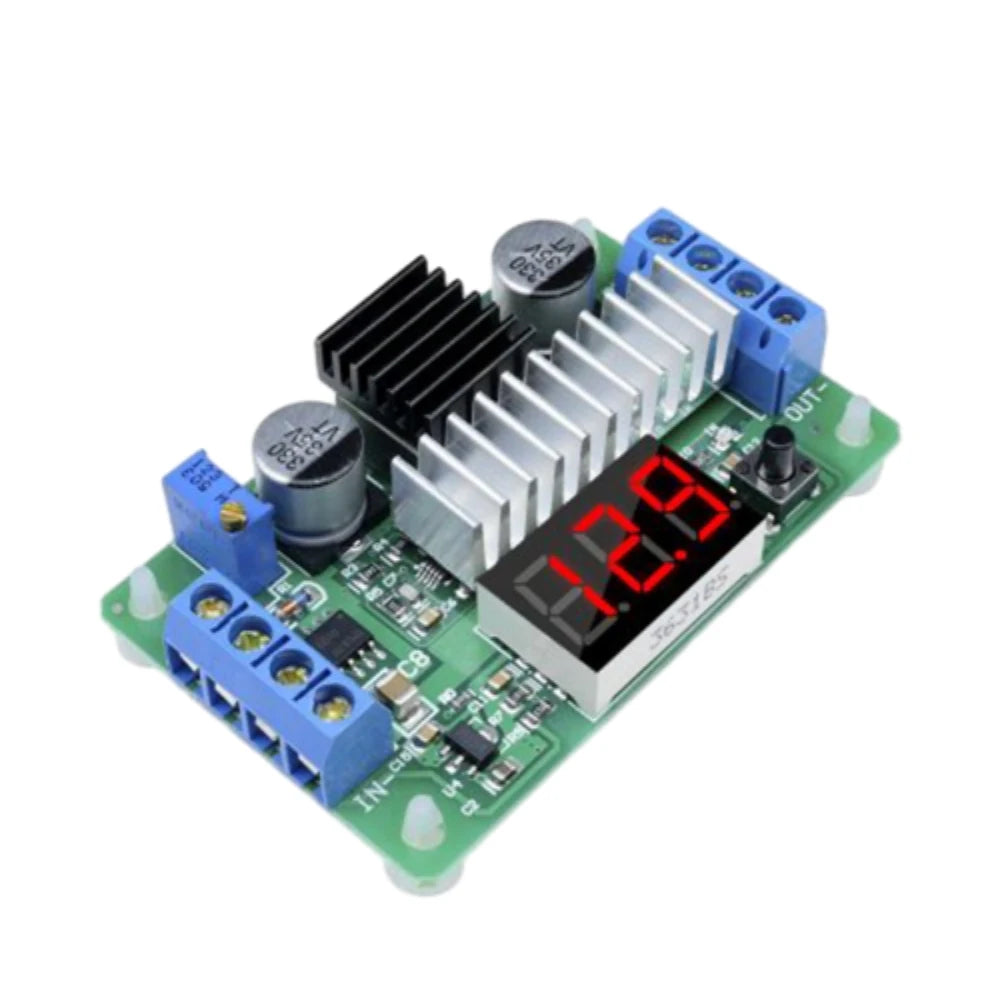

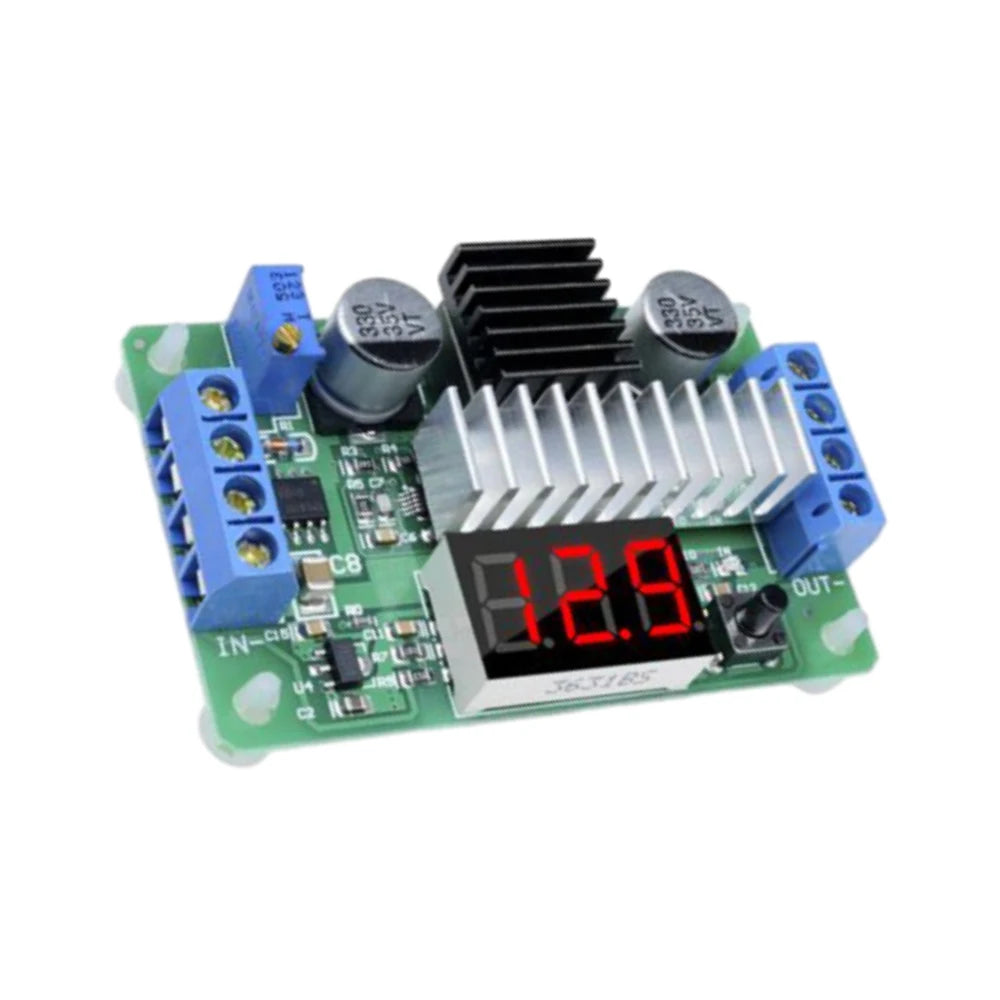

100W DC-DC Boost Converter — Step-Up Adjustable Power Supply Module with Red LED Display
Take control of your electronics projects with this compact yet powerful 100W DC-DC Boost Converter Module. Designed for hobbyists, engineers, and makers alike, this step-up power supply board lets you convert a lower DC input voltage to a higher DC output voltage — all within a wide 3.5V–30V range. The built-in red LED voltmeter display gives you instant, at-a-glance feedback on your output voltage, making tuning and monitoring effortless.
Whether you're powering a custom project, charging batteries, or regulating voltage in a DIY circuit, this adjustable power supply board delivers reliable, consistent performance in a space-saving form factor. Made in Mainland China.
Key Features
- Wide Input/Output Range: Accepts DC 3.5V–30V input and delivers DC 3.5V–30V adjustable output
- High Power Capacity: Handles up to 100W, with a peak input current of 10A and a continuous input current of 6A
- Red LED Voltmeter Display: Built-in digital readout for real-time voltage monitoring (accuracy: ±5%+1 digit)
- Step-Up (Boost) Topology: Efficiently raises input voltage to your desired output level
- Adjustable Output: Fine-tune the output voltage with the onboard potentiometer
- Compact Board Design: Easy to integrate into DIY enclosures, test rigs, or custom builds
Specifications
| Input Voltage Range | DC 3.5V – 30V |
| Output Voltage Range | DC 3.5V – 30V (adjustable) |
| Maximum Power | 100W |
| Maximum Input Current (Peak) | 10A |
| Continuous Input Current | 6A |
| Voltmeter Accuracy | ±(5% + 1 digit) |
| Display | Red LED digital voltmeter |
| Converter Type | DC-DC Boost (Step-Up) |
| Country of Origin | Made in Mainland China |
What's in the Box
- 1× DC-DC Boost Power Supply Module (with red LED display)
Important Notes
- Due to differences in lighting and screen calibration, the item's color may vary slightly from product images.
- Please allow a tolerance of 1mm–1cm due to manual measurement.
- Ensure your input power source does not exceed the specified voltage and current ratings to protect the module and connected devices.
For general electrical safety guidelines when working with DC power electronics, refer to the OSHA Electrical Safety Resources.
Frequently Asked Questions
Q: Can this DC-DC boost converter module step down voltage as well?
A: No — this is a step-up (boost) converter only. It is designed to increase the output voltage above the input voltage. The output voltage must always be set higher than the input voltage for proper boost operation. It cannot be used as a buck (step-down) converter.
Q: What is the maximum load I can connect to this 100W boost power supply module?
A: The module supports up to 100W of output power with a peak input current of 10A and a recommended continuous input current of 6A. For sustained use, it is best practice to operate at or below the continuous current rating to ensure long-term reliability and prevent overheating.
Q: How do I adjust the output voltage on this adjustable power supply board?
A: The output voltage is adjusted using the onboard potentiometer (trim pot). Use a small screwdriver to turn the potentiometer while monitoring the red LED voltmeter display, which shows the current output voltage in real time. Always verify the output voltage with a multimeter before connecting sensitive loads.
Q: Is this power supply module suitable for charging lithium batteries?
A: This module can provide an adjustable boosted DC voltage that may be used in battery charging circuits, provided you set the output voltage correctly and use appropriate protection circuitry. It does not include built-in overcharge protection, so always ensure you are using suitable charge management components in your circuit design.
