1000W PWM DC Brush Motor Speed Controller — DC 10–50V, 20A

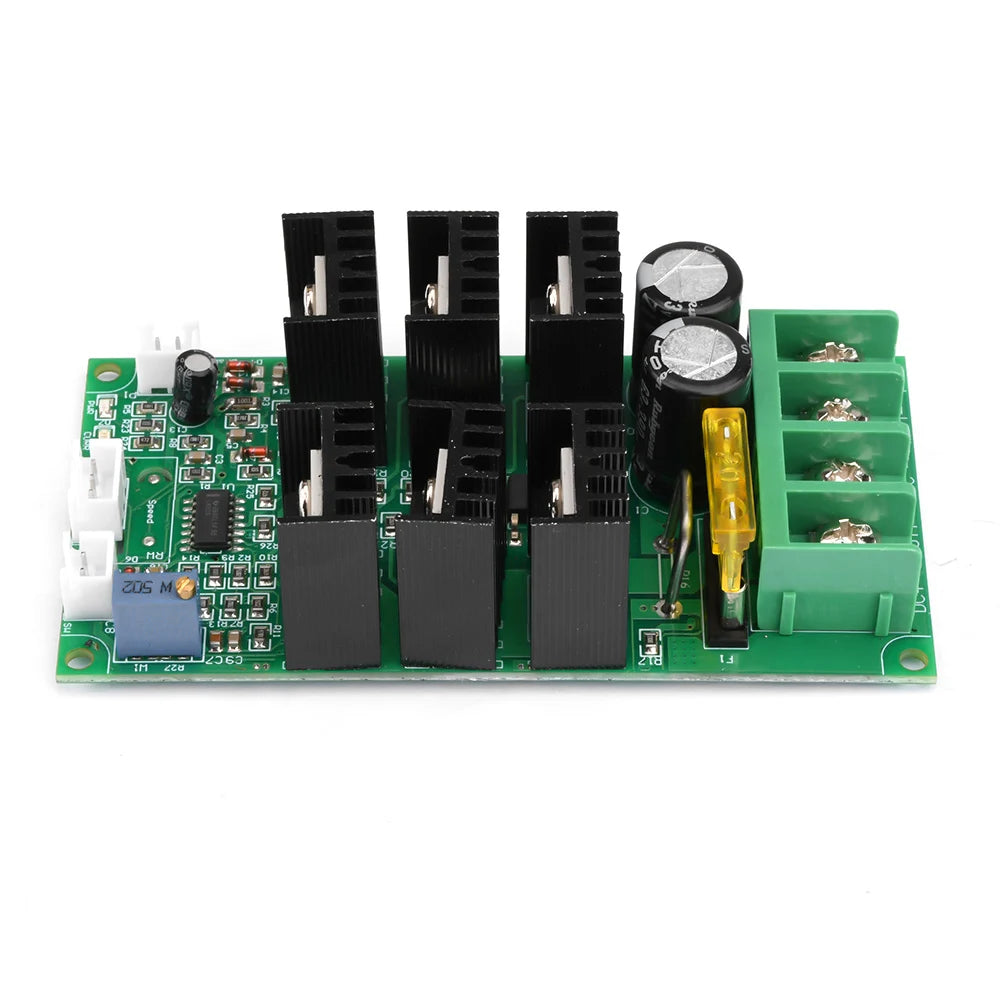

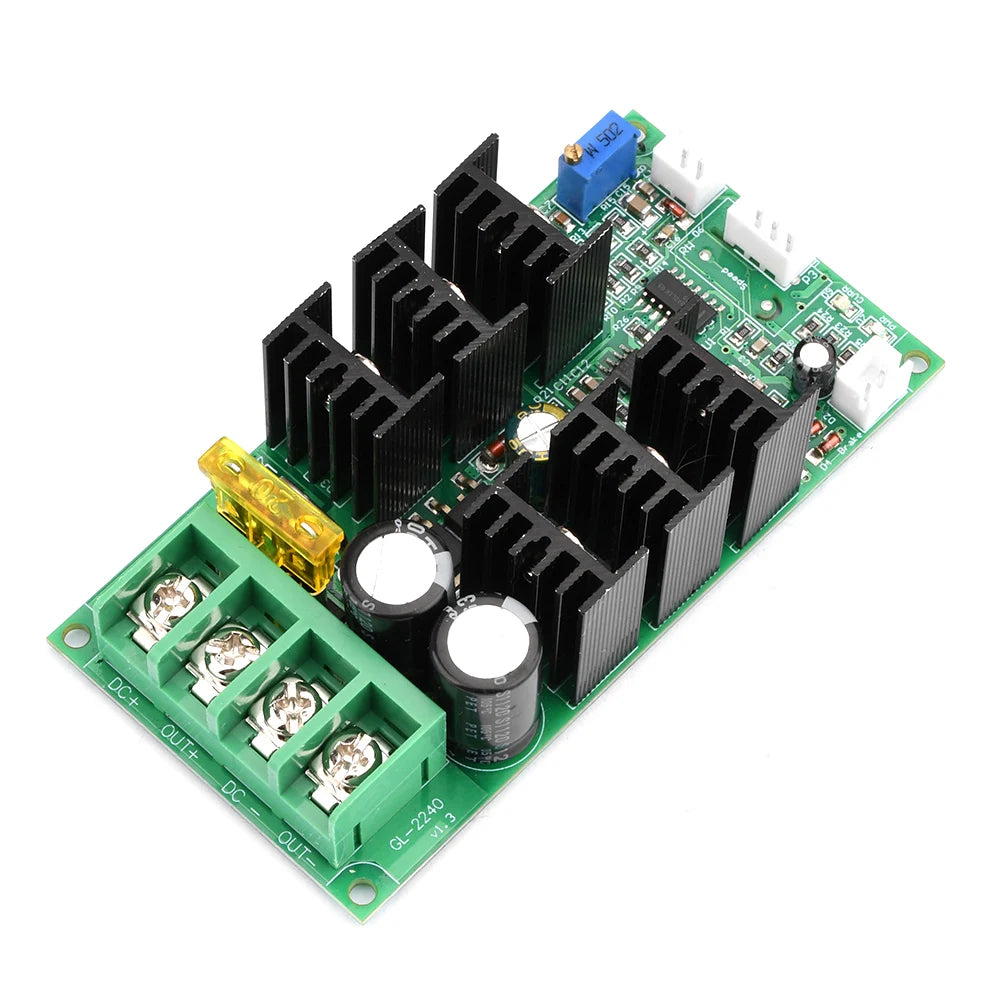

Take precise control of your DC brush motors, lighting, and heating systems with this robust 1000W PWM Motor Speed Controller. Engineered for a wide input range of 10V to 50V DC and a continuous current capacity of 20A, this versatile controller handles speed regulation, dimming, and temperature control with ease. The durable metal and PCB construction ensures reliable, long-lasting performance in demanding environments.
Made in Mainland China.
Key Features
- Wide voltage range: Operates across DC 10V–50V for maximum compatibility
- High current capacity: Handles up to 20A / 1000W continuous load
- PWM control technology: Smooth, efficient speed and power regulation
- Multi-function: Motor speed regulation, DC lamp dimming, and heater temperature control
- Compact design: Metal + PCB construction with included shell for protection
- Includes potentiometer: Easy manual adjustment right out of the box
Specifications
| Input Voltage | DC 10V – 50V |
| Maximum Current | 20A |
| Maximum Power | 1000W |
| Control Method | PWM (Pulse Width Modulation) |
| Material | Metal + PCB |
| Compatible Motor Type | DC Brush Motors |
Wide Range of Applications
- General DC brush motor speed regulation
- Automotive cooling fans, windshield wipers, air conditioning fans
- Conveyor belt drives, exhaust fans, treadmill motors
- Multiple computer fan arrays (parallel configuration)
- DC lamp dimming and DC heater temperature regulation
- DC brush electric vehicles and e-bikes
- Any application requiring PWM-based DC current-limiting control

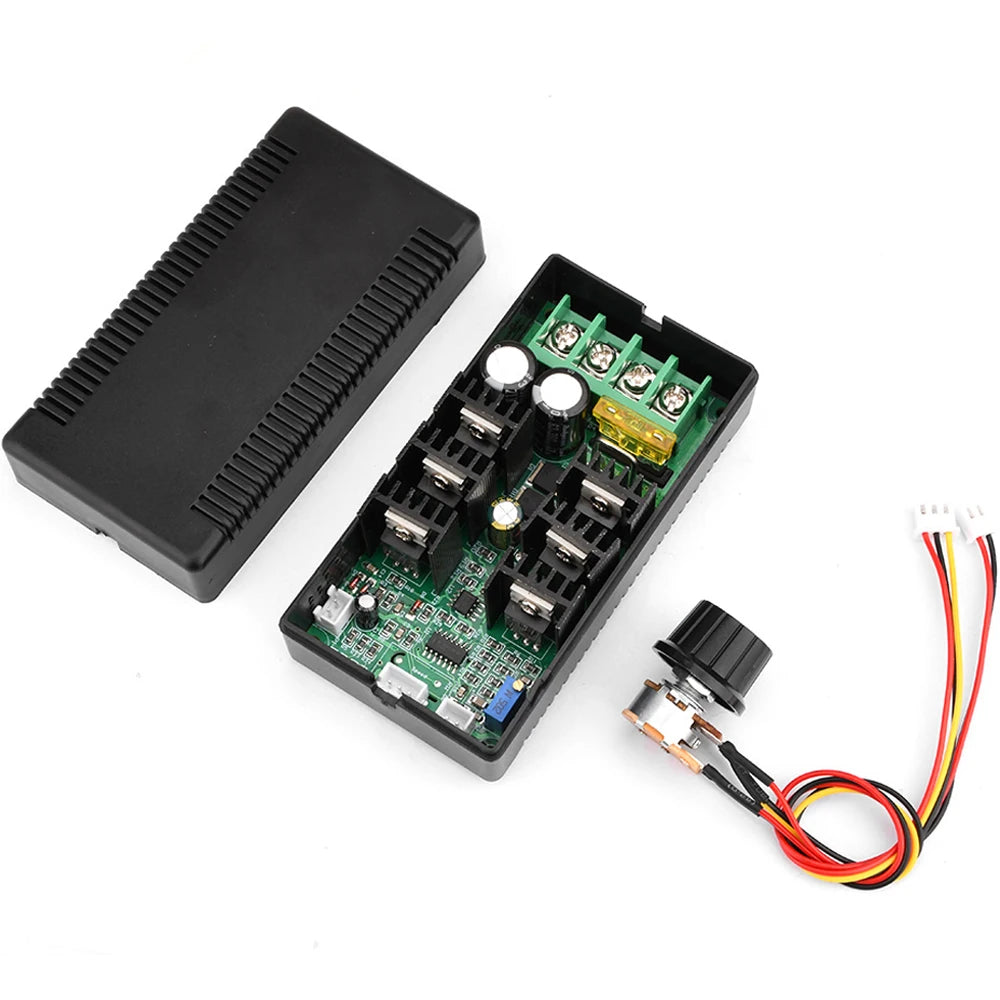

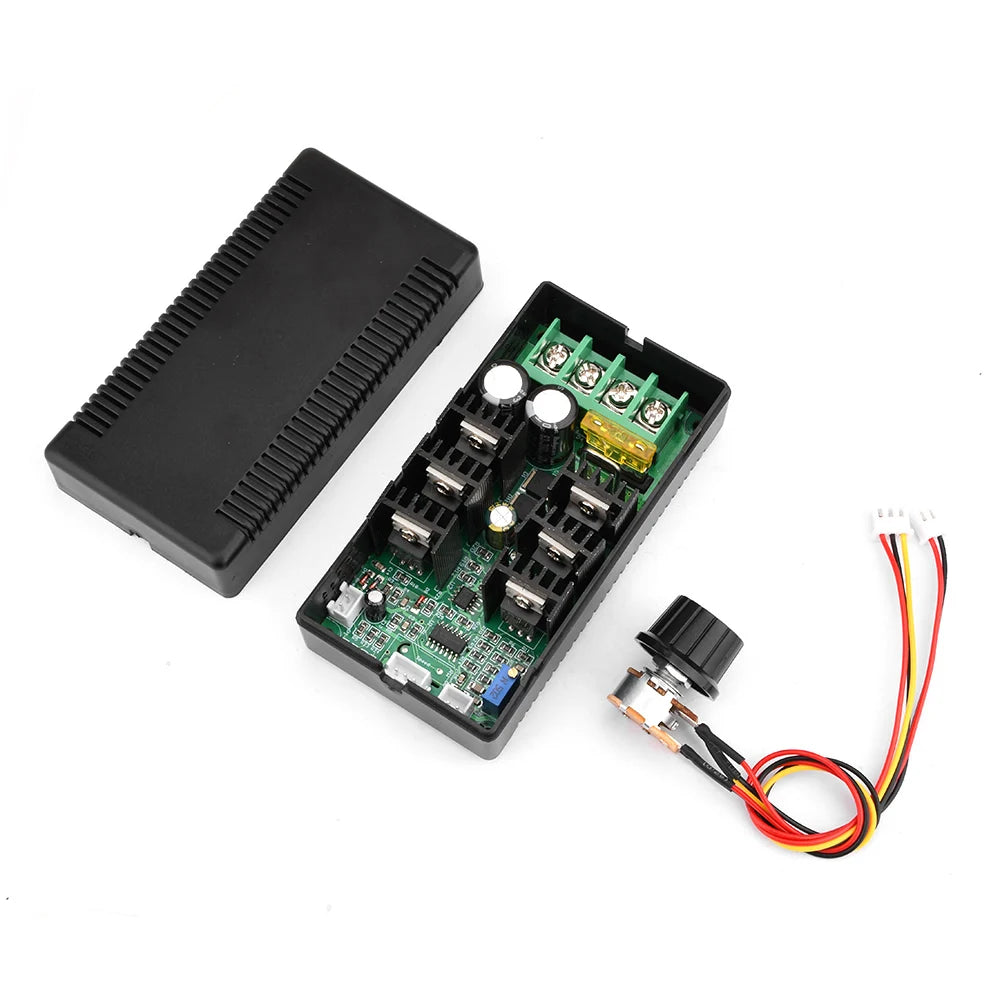

What's in the Box
- 1× Motor Speed Controller
- 1× Potentiometer
- 1× Protective Shell
Important Notes
- Colors may vary slightly due to monitor calibration and lighting conditions.

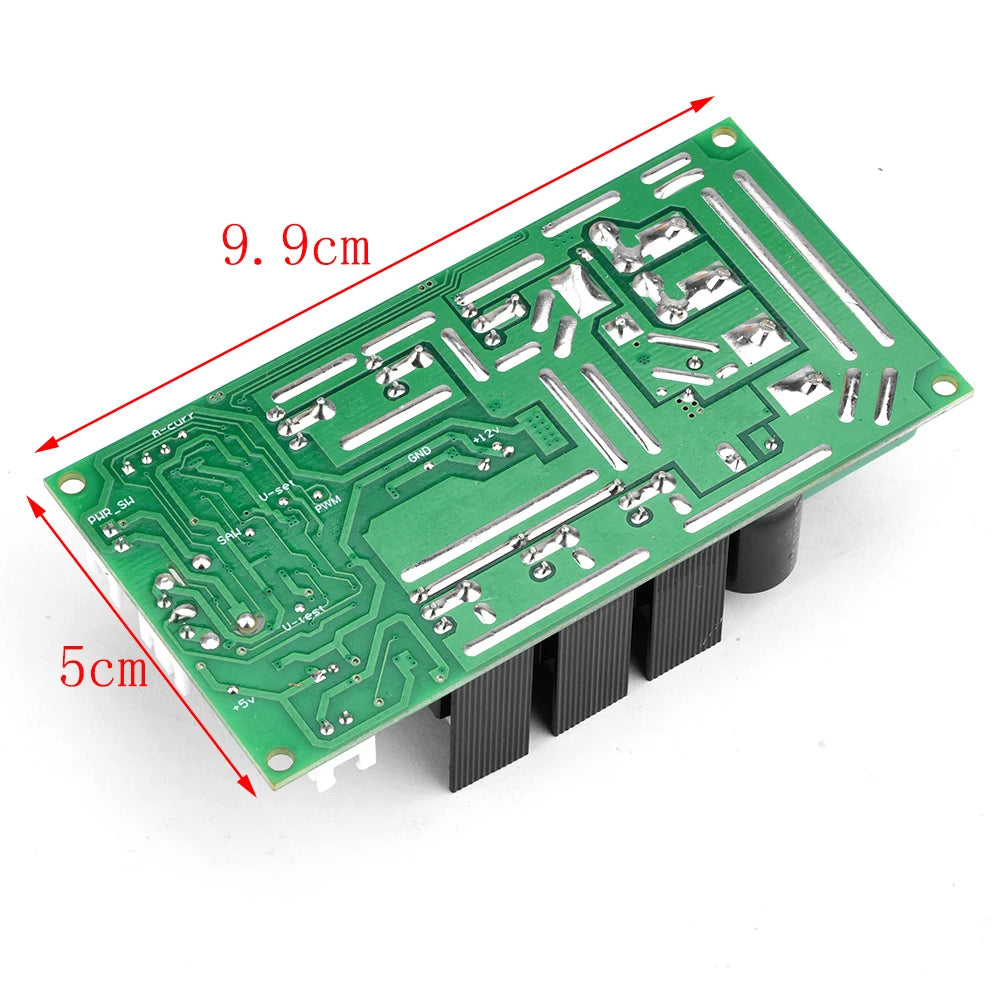

- Please allow ±1–3 cm tolerance due to manual measurement.
For general electrical safety standards and guidelines related to low-voltage devices, visit the U.S. Consumer Product Safety Commission (CPSC). For information on electrical component safety and standards, refer to OSHA's Electrical Safety Resources.
Frequently Asked Questions
Q: What types of motors is this PWM DC motor speed controller compatible with?
A: This controller is designed for all types of DC brush motors operating within the DC 10–50V range. It is commonly used for automotive cooling fans, conveyor belt motors, treadmill motors, e-bike motors, and more — any application that uses a brushed DC motor and requires variable speed control.
Q: Can this controller be used for DC lamp dimming or heater temperature regulation?
A: Yes! In addition to motor speed regulation, this PWM controller supports DC lamp dimming and DC heater temperature adjustment, making it a multi-purpose control module for a variety of 10–50V DC applications up to 1000W / 20A.
Q: What is PWM control and why does it matter?
A: PWM (Pulse Width Modulation) is an efficient method of controlling power delivery to a load by rapidly switching the voltage on and off. This results in smooth, stepless speed or power adjustment with minimal energy loss and heat generation compared to resistive control methods — ideal for precise and efficient motor and load management.

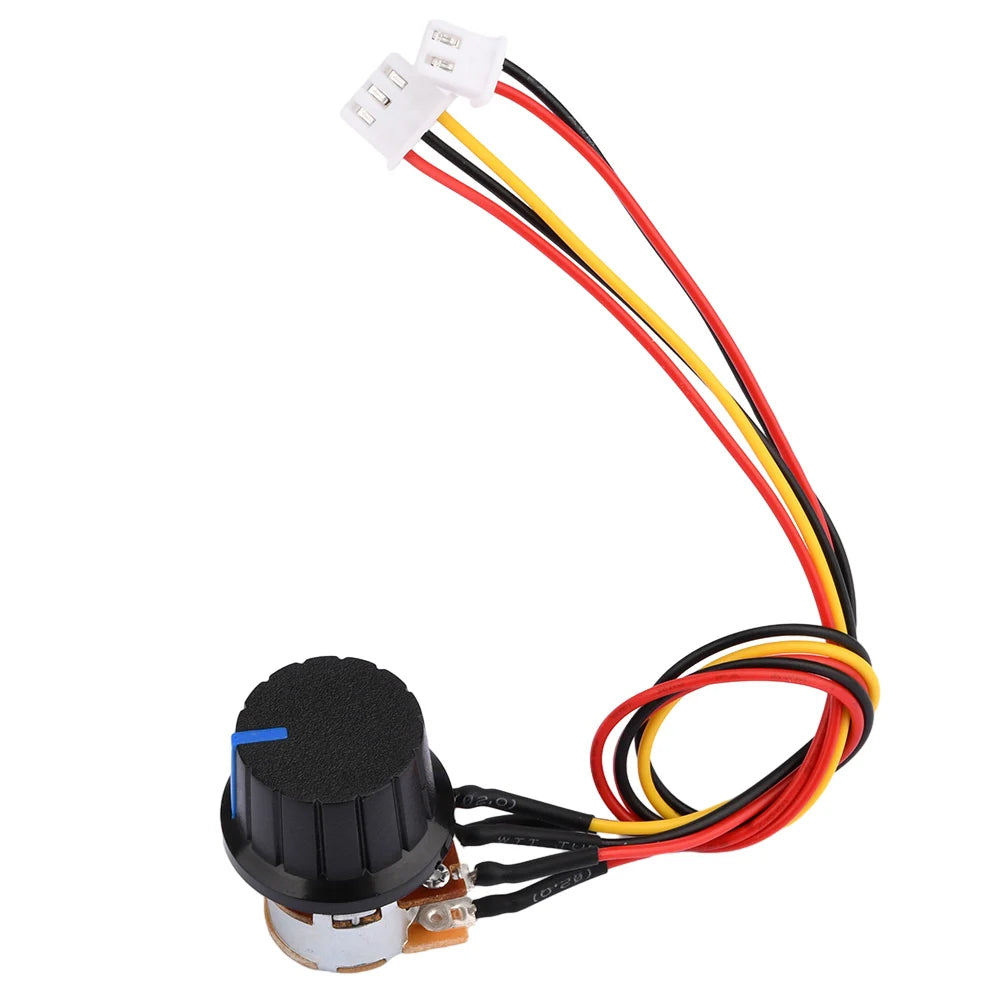

Q: Is a potentiometer included, and how do I adjust the speed?
A: Yes, a potentiometer is included in the package. Simply connect it to the designated terminals on the controller board and turn the dial to smoothly adjust motor speed, dimming level, or temperature output from 0% to 100% of the set input voltage.
