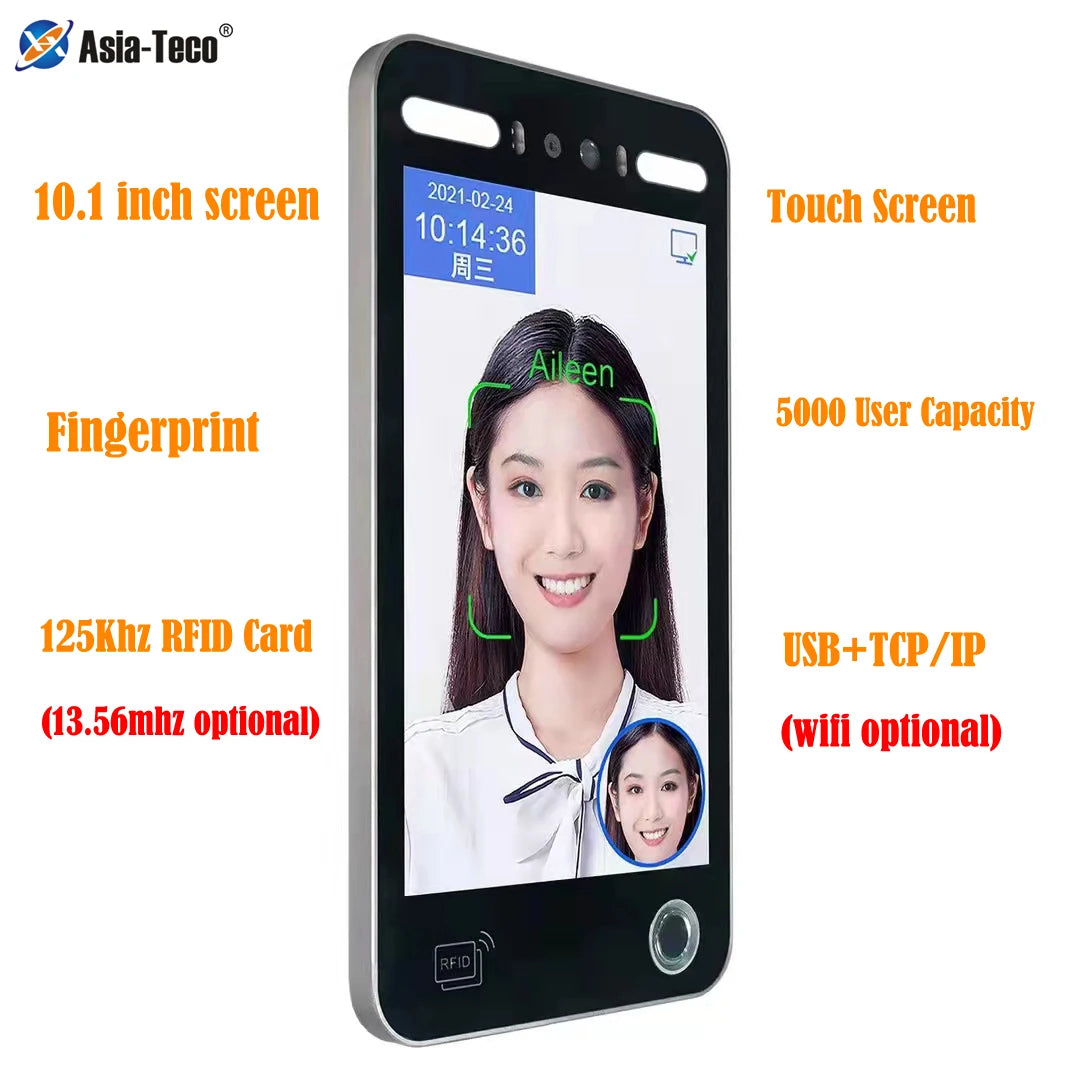

Asia-Teco AI10FE — 10-Inch Touchscreen Face Recognition Access Control & Attendance System
Upgrade your building's entry management with the Asia-Teco AI10FE, an ultra-thin 10.1-inch IPS touchscreen door access control and time attendance terminal. Combining AI-powered face recognition, RFID card reading, and seamless TCP/IP network connectivity, this all-in-one system delivers fast, accurate, and contactless identity verification for offices, warehouses, schools, and commercial facilities.
Why Choose the Asia-Teco AI10FE?
- Lightning-Fast Recognition: Identifies registered users in under 0.5 seconds at distances of 0.5 m to 1.5 m — no touching required.
- 99.8% Accuracy: Dual RGB + IR cameras ensure reliable recognition in varied lighting conditions, including low-light environments.
- Multi-Person Detection: Simultaneously identifies up to 5 people in a single frame for high-traffic entry points.
- Large Capacity: Stores up to 5,000 faces, 5,000 RFID cards, 5,000 passwords, and 500,000 event records — ideal for mid-to-large organisations.
- Flexible Verification Modes: Supports face recognition, RFID card (26–56-bit EM/MF/NFC/Desfire), and password — use any combination to match your security needs.
- Smooth Network Integration: TCP/IP and USB disk communication make it easy to connect to your existing network infrastructure and export attendance data.
- Intelligent Voice Broadcasting: Built-in speaker announces access results audibly, reducing confusion at busy entry points.
- Ultra-Thin, Modern Design: Sleek profile fits seamlessly on any wall or desktop mount without bulky hardware.
- Multi-Language Support: Choose from multiple display languages to suit your workforce.
Complete Specifications
| Model | AI10FE |
| Screen | 10.1" IPS Capacitive Touchscreen |
| CPU | Quad-Core, 1.2 GHz |
| RAM / ROM | 256 MB DDR3 / 4 GB eMMC |
| Camera | RGB Camera + IR Camera |
| Recognition Speed | < 0.5 seconds |
| Recognition Distance | 0.5 m – 1.5 m |
| Accuracy | 99.8% |
| Simultaneous Recognition | Up to 5 people |
| Face Capacity | 5,000 |
| RFID Card Capacity | 5,000 (26–56-bit EM/MF/NFC/Desfire) |
| Password Capacity | 5,000 |
| Storage Records | 500,000 |
| Communication | TCP/IP, USB Disk |
| Infrared LED | Supported |
| Speaker | Intelligent Voice Broadcasting |
| Security Mode | Fail Secure |
| Install Type | Desktop / Wall Mount |
| Working Temperature | 0 °C – 40 °C |
| Working Voltage | DC 12 V / 2 A |
| Language | Multi-Language |
| Country of Origin | Made in Mainland China |
Ideal Use Cases
- Corporate offices and co-working spaces
- Schools, universities, and training centres
- Warehouses, factories, and logistics hubs
- Healthcare facilities and clinics
- Residential apartment complexes and gated communities
Learn More About Access Control Standards
For guidance on best practices in physical access control and workplace safety technology, visit the OSHA Workplace Safety Resources. You can also review consumer product safety information at the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What verification methods does the AI10FE face recognition access control system support?
A: The AI10FE supports three verification methods: face recognition (contactless, up to 5 simultaneous users), RFID card (26–56-bit EM/MF/NFC/Desfire compatible), and password entry. You can configure these individually or in combination for multi-factor access control.
Q: How does the system connect to my network or HR software?
A: The device supports TCP/IP wired network communication and USB disk data export. This allows you to integrate the terminal with most existing network infrastructures and export attendance records to HR or payroll software with ease.
Q: Can the face recognition terminal work in low-light or nighttime conditions?
A: Yes. The dual-camera setup includes an IR (infrared) camera and IR LED illumination, allowing accurate face recognition even in poor lighting or complete darkness — perfect for 24/7 entry points.
Q: How many users and records can this access control system store?
A: The AI10FE can store up to 5,000 registered faces, 5,000 RFID cards, and 5,000 passwords. It also retains up to 500,000 event log records, making it well-suited for medium-to-large organisations.
Q: Is the unit suitable for both wall mounting and desktop use?
A: Yes. The ultra-thin AI10FE supports both desktop placement and wall mounting, giving you flexibility to install it at reception desks, gate posts, or directly on a wall beside a door or turnstile.
